Focus LCDs C204A-BW-LW25
- Part No.:
- C204A-BW-LW25
- Manufacturer:
- Focus LCDs
- Category:
- LCD, OLED Character and Numeric
- Package:
- Description:
- 20X4 STN BLUE CHARACTER LCD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C204A-BW-LW25 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Focus LCDs
- Series:
- C204A
- Packaging:
- Tape & Box (TB)
- Product Status:
- Active
- Number of Characters:
- 80.0
- Display Format:
- 20 x 4
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Transmissive
- Character Size:
- 4.75mm H x 2.95mm W
- Outline L x W x H:
- 98.00mm x 60.00mm x 13.50mm
- Viewing Area:
- 76.00mm L x 25.20mm W
- Backlight:
- LED - White
- Voltage - Supply:
- 5V
- Dot Size:
- 0.55mm W x 0.55mm H
- Interface:
- -
- Controller Type:
- ST7066U
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- Blue
- Background Color:
- White
| Image |  |
 |
 |
 |
 |

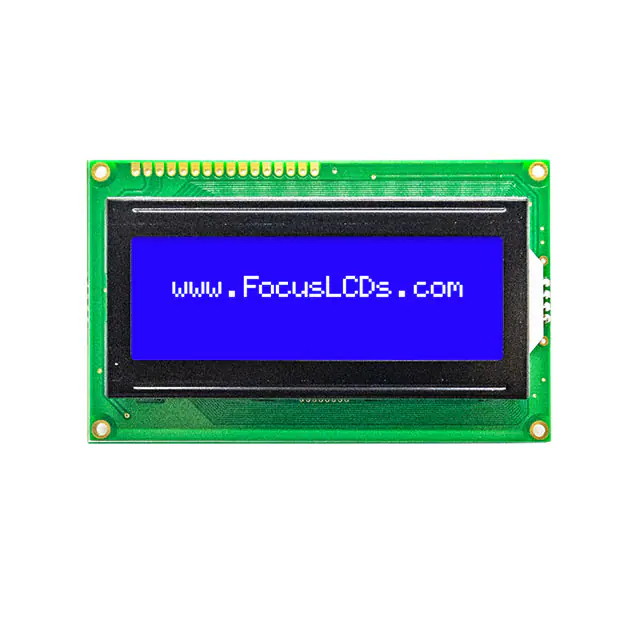

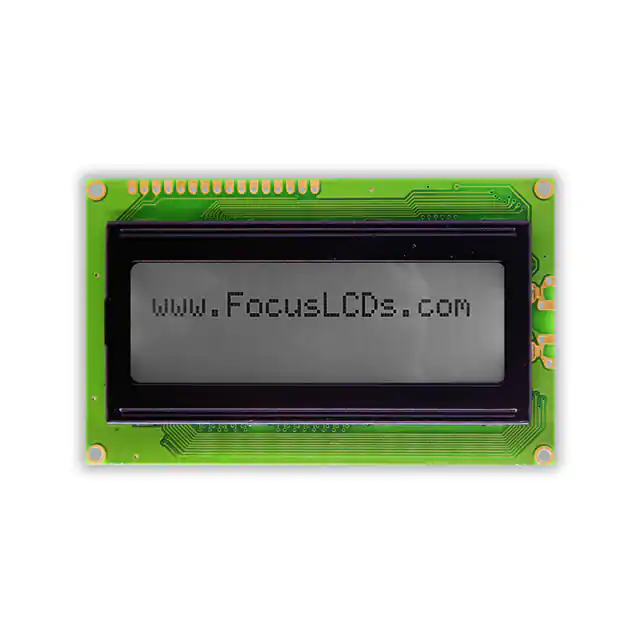

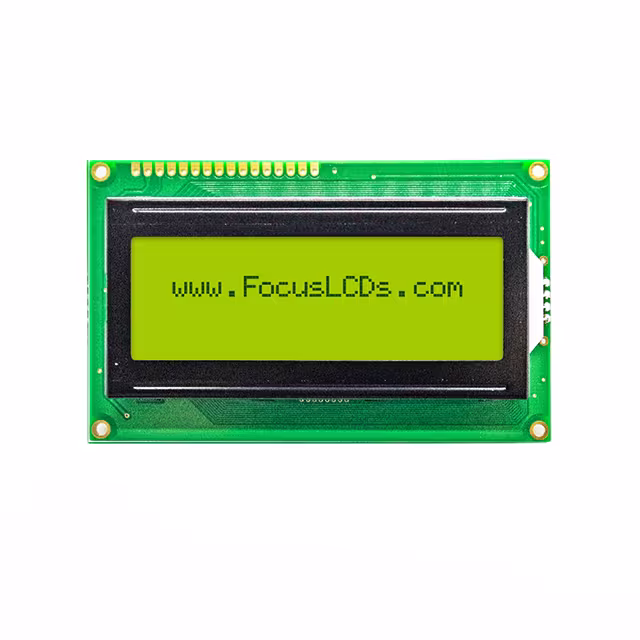

| Part Number | C204ADBFGSW6WT55PAB | C204AXBSGN06WR50XAA | C204A-BW-LW65 | C204A-YTY-LW65 | C204A-YTY-LW63 |
| Manufacturer | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs |
| Series | - | - | C204A | C204A | C204A |
| Packaging | Box | Box | Box | Box | Tape & Box (TB) |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 |
| Display Format | 20 x 4 | 20 x 4 | 20 x 4 | 20 x 4 | 20 x 4 |
| Character Format | 5 x 7 Dots | 5 x 8 Dots | 5 x 7 Dots | 5 x 7 Dots | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective | Reflective | Transmissive | Transflective | Transflective |
| Character Size | 4.75mm H x 2.96mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 14.00mm | 98.00mm x 60.00mm x 9.50mm | 98.00mm x 60.00mm x 13.50mm | 98.00mm x 60.00mm x 13.50mm | 98.00mm x 60.00mm x 13.50mm |
| Viewing Area | 76.00mm L x 26.00mm W | 76.00mm L x 25.20mm W | 76.00mm L x 25.20mm W | 76.00mm L x 25.20mm W | 76.00mm L x 25.20mm W |
| Backlight | LED - White | Without Backlight | LED - White | LED - Yellow | LED - Yellow |
| Voltage - Supply | 5V | 5V | 5V | 5V | 3.3V |
| Dot Size | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Controller Type | ST7066U | ST7066U | ST7066U | ST7066U | ST7066U |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Black | Black | White | Black | Black |
| Background Color | Gray | Gray | Blue | Yellow/Green | Yellow/Green |
