Focus LCDs C161B-BW-LW63

Name: C161B-BW-LW63
Brand: Focus LCDs
SKU: C161B-BW-LW63
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: C161B-BW-LW63

Manufacturer:: Focus LCDs

Category:: LCD, OLED Character and Numeric

Package:

Description:: 16X1 STN BLUE CHARACTER LCD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

C161B-BW-LW63 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Focus LCDs

Series:: C161B

Packaging:: Tape & Box (TB)

Product Status:: Active

Number of Characters:: 16.0

Display Format:: 16 x 1

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Transmissive

Character Size:: 9.22mm H x 4.84mm W

Outline L x W x H:: 122.00mm x 33.00mm x 14.00mm

Viewing Area:: 99.00mm L x 13.00mm W

Backlight:: LED - White

Voltage - Supply:: 3.3V

Dot Size:: 0.92mm W x 1.10mm H

Interface:: -

Controller Type:: ST7066U

Operating Temperature:: -20°C ~ 70°C

Text Color:: Blue

Background Color:: White

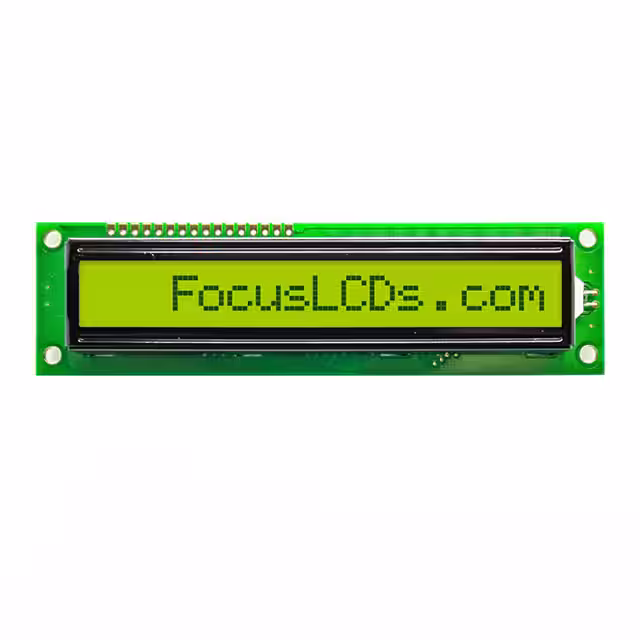

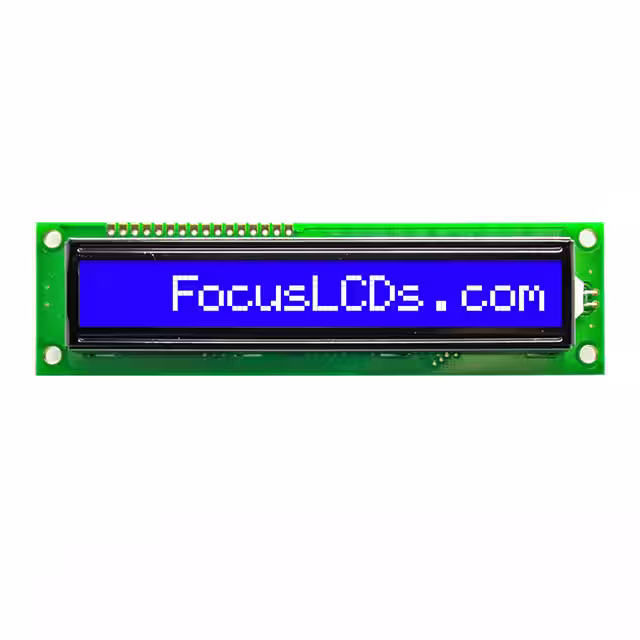

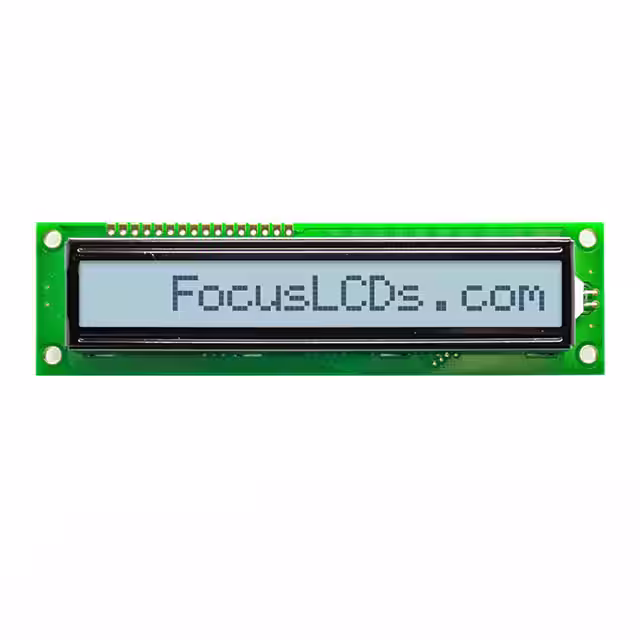

Part Number	C161B-BW-LW65	C161B-YTY-LW65	C161B-FTW-LW65	C161B-YTY-LW63	C161B-FTW-LW63
Manufacturer	Focus LCDs	Focus LCDs	Focus LCDs	Focus LCDs	Focus LCDs
Series	C161B	C161B	C161B	C161B	C161B
Packaging	Box	Box	Box	Tape & Box (TB)	Tape & Box (TB)
Product Status	Active	Active	Active	Active	Active
Number of Characters	16.0	16.0	16.0	16.0	16.0
Display Format	16 x 1	16 x 1	16 x 1	16 x 1	16 x 1
Character Format	5 x 7 Dots	5 x 7 Dots	5 x 7 Dots	5 x 8 Dots	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic	STN - Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic
Display Mode	Transmissive	Transflective	Transflective	Transflective	Transflective
Character Size	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W
Outline L x W x H	122.00mm x 33.00mm x 14.00mm	122.00mm x 33.00mm x 14.00mm	122.00mm x 33.00mm x 14.00mm	122.00mm x 33.00mm x 14.00mm	122.00mm x 33.00mm x 14.00mm
Viewing Area	99.00mm L x 13.00mm W	99.00mm L x 13.00mm W	99.00mm L x 13.00mm W	99.00mm L x 13.00mm W	99.00mm L x 13.00mm W
Backlight	LED - White	LED - Yellow	LED - White	LED - Yellow	LED - White
Voltage - Supply	5V	5V	5V	3.3V	3.3V
Dot Size	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H
Interface	Parallel	Parallel	Parallel	-	Parallel
Controller Type	ST7066U	ST7066U	ST7066U	ST7066U	ST7066U
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	White	Black	Black	Black	Black
Background Color	Blue	Yellow/Green	Gray	Yellow/Green	Gray
