Venkel C0603C0G500-2R2ANR
- Part No.:
- C0603C0G500-2R2ANR
- Manufacturer:
- Venkel
- Category:
- Ceramic Capacitors
- Package:
- Description:
- Chip Capacitor,0603,C0G,50V,2.2p
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C0603C0G500-2R2ANR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Venkel
- Series:
- C
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Capacitance:
- 2.2 pF
- Tolerance:
- ±0.05pF
- Voltage - Rated:
- 50V
- Temperature Coefficient:
- C0G, NP0
- Operating Temperature:
- -55°C ~ 125°C
- Features:
- Ultra Low ESR
- Ratings:
- -
- Applications:
- General Purpose
- Failure Rate:
- -
- Mounting Type:
- Surface Mount, MLCC
- Package / Case:
- 0603 (1608 Metric)
- Size / Dimension:
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):
- -
- Thickness (Max):
- 0.033" (0.84mm)
- Lead Spacing:
- -
- Lead Style:
- -
| Image |  |
 |
|
|
|

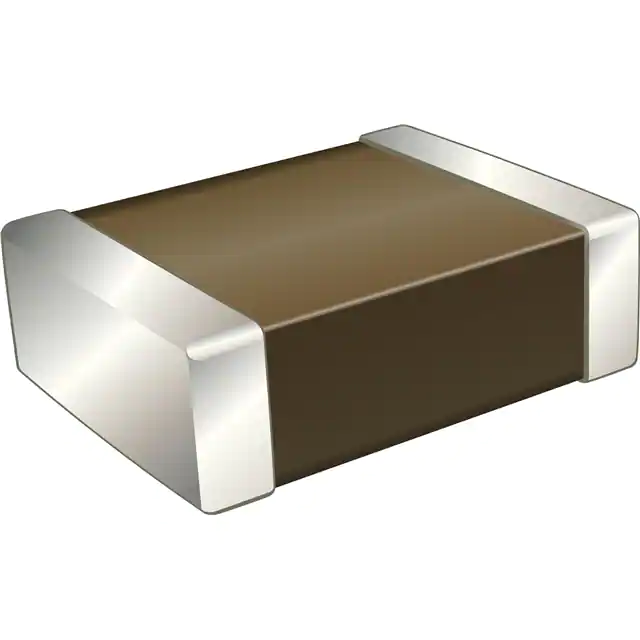

| Part Number | C0603C0G500-681JNP | C0603C0G500-122FNE | C0603C0G500-2R5BNP | C0603C0G500-2R7CNE | C0603C0G500-130FNE |
| Manufacturer | Venkel | Venkel | Venkel | Venkel | Venkel |
| Series | C | C | C | C | C |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 680 pF | 1200 pF | 2.5 pF | 2.7 pF | 13 pF |
| Tolerance | ±5% | ±1% | ±0.1pF | ±0.25pF | ±1% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
