Fanstel Corp. BT840

Name: BT840
Brand: Fanstel Corp.
SKU: BT840
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: BT840

Manufacturer:: Fanstel Corp.

Category:: RF Transceiver Modules and Modems

Package:: 16-SMD Module

Datasheet:: BT840.pdf

Description:: RF TXRX MOD BT TRACE SMD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

BT840 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Fanstel Corp.

Series:: -

Package/Case:: 16-SMD Module

Packaging:: Tape & Reel (TR)

Product Status:: Active

Programmable:: Not Verified

RF Family/Standard:: 802.15.4, Bluetooth

Protocol:: Bluetooth v5.0, Thread, Zigbee®

Modulation:: -

Frequency:: 2.4GHz

Data Rate:: 12Mbps

Power - Output:: 8dBm

Sensitivity:: -96dBm

Serial Interfaces:: SPI, USB

Antenna Type:: Integrated, Trace

Utilized IC / Part:: nRF52840

Memory Size:: 1MB Flash, 256kB RAM

Voltage - Supply:: 1.7V ~ 5.5V

Current - Receiving:: -

Current - Transmitting:: -

Mounting Type:: Surface Mount

Operating Temperature:: -40°C ~ 85°C

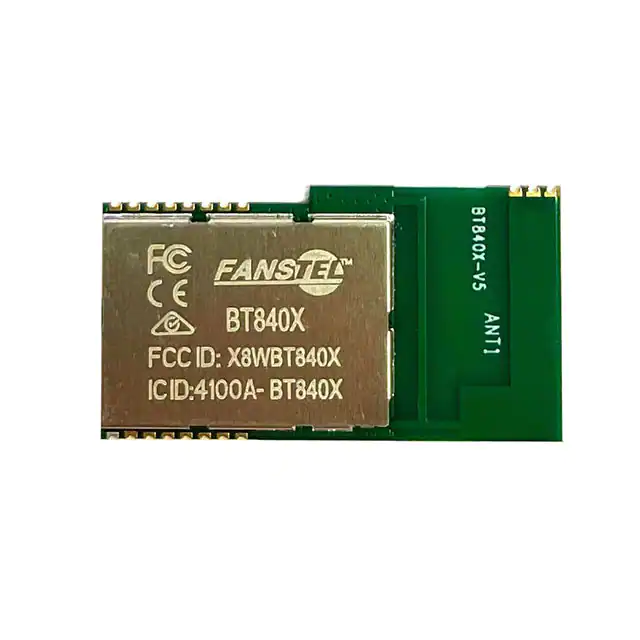

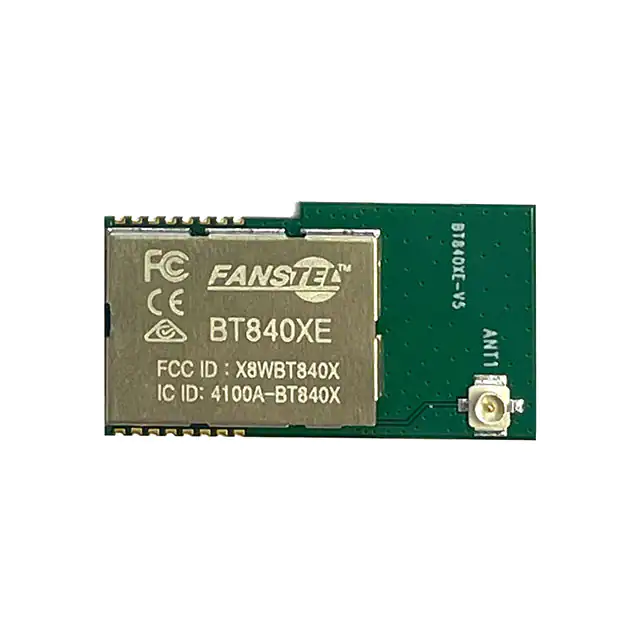

Part Number	BT840E	BT840	BT840F	BT840X	BT840XE
Manufacturer	Fanstel Corp.	Fanstel Corp.	Fanstel Corp.	Fanstel Corp.	Fanstel Corp.
Series	-	-	-	-	-
Package/Case	16-SMD Module	16-SMD Module	16-SMD Module	16-SMD Module	16-SMD Module
Packaging	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)
Product Status	Active	Active	Active	Active	Active
Programmable	Not Verified	Not Verified	Not Verified	Not Verified	Not Verified
RF Family/Standard	802.15.4, Bluetooth	802.15.4, Bluetooth	802.15.4, Bluetooth	802.15.4, Bluetooth	802.15.4, Bluetooth
Protocol	Bluetooth v5.0, Thread, Zigbee®	Bluetooth v5.0, Thread, Zigbee®	Bluetooth v5.0, Thread, Zigbee®	Bluetooth v5.0, Thread, Zigbee®	Bluetooth v5.0, Thread, Zigbee®
Modulation	-	-	-	-	-
Frequency	2.4GHz	2.4GHz	2.4GHz	2.4GHz	2.4GHz
Data Rate	12Mbps	12Mbps	12Mbps	2Mbps	2Mbps
Power - Output	8dBm	8dBm	8dBm	21dBm	21dBm
Sensitivity	-96dBm	-96dBm	-96dBm	-96dBm	-96dBm
Serial Interfaces	SPI, USB	SPI, USB	SPI, USB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
Antenna Type	Antenna Not Included, U.FL	Integrated, Trace	Integrated, Trace	PCB Trace	Antenna Not Included, U.FL
Utilized IC / Part	nRF52840	nRF52840	nRF52840	nRF52840-QIAA	nRF52840-QIAA
Memory Size	1MB Flash, 256kB RAM	1MB Flash, 256kB RAM	1MB Flash, 256kB RAM	1MB Flash, 256kB RAM	1MB Flash, 256kB RAM
Voltage - Supply	1.7V ~ 5.5V	1.7V ~ 5.5V	1.7V ~ 5.5V	1.7V ~ 5.5V	1.7V ~ 5.5V
Current - Receiving	-	-	-	-	-
Current - Transmitting	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
