Bestar BSD09797
- Part No.:
- BSD09797
- Manufacturer:
- Bestar
- Category:
- Capacitive Touch Screen & Film
- Package:
- Description:
- 9.7inch Capacitive Touch panels with I²C IIC interface 4:3
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
BSD09797 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bestar
- Product Tags:
- Automotive Capacitive Touch Screen, Business Capacitive Touch Screen
- Commonality:
- General
- Structures:
- Glass/Glass
- Screen Size:
- 9.7 inch
- Aspect Ratio:
- 4:3 (W:H)
- Active Area:
- 195 × 147 mm
- View Area:
- 195.51 × 147.46 mm
- Outline Dimension:
- 210 × 164 mm
- Thickness:
- 1.5 mm
- Surface Hardness:
- Hard coating (3H)
- Tail Exit:
- 6 o'clock
- Tail Length:
- 31.39 mm
- Transmittance:
- ≧80%
- Touch Points Type:
- Multi-touch
- Touch Points:
- 6 points
- Touch Mode:
- Touch
- Controller State:
- Integrated
- Interface Type:
- I²C
- Storage Temp:
- -30 ~ 80 °C
- Impact Resistance:
- Normal
| Image |  |
 |

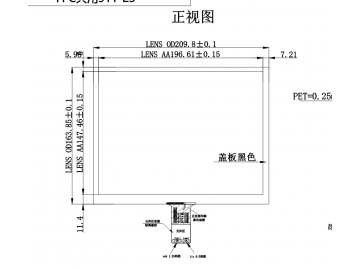

| Part Number | BSD09797 | BSD09797-4 |
| Manufacturer | Bestar | Bestar |
| Product Tags | Automotive Capacitive Touch Screen, Business Capacitive Touch Screen | Automotive Capacitive Touch Screen |
| Commonality | General | General |
| Structures | Glass/Glass | Glass/Glass |
| Screen Size | 9.7 inch | 9.7 inch |
| Aspect Ratio | 4:3 (W:H) | 4:3 (W:H) |
| Active Area | 195 × 147 mm | 196.61 × 147 mm |
| View Area | 195.51 × 147.46 mm | 196.61 × 147.46 mm |
| Outline Dimension | 210 × 164 mm | 209.8 × 163.85 mm |
| Thickness | 1.5 mm | 1.5 mm |
| Surface Hardness | Hard coating (3H) | Hard coating (3H) |
| Tail Exit | 6 o'clock | 6 o'clock |
| Tail Length | 31.39 mm | 48.64 mm |
| Transmittance | ≧80% | ≧85% |
| Touch Points Type | Multi-touch | Multi-touch |
| Touch Points | 6 points | 6 points |
| Touch Mode | Touch | Touch |
| Controller State | Integrated | Integrated |
| Interface Type | I²C | I²C |
| Storage Temp | -30 ~ 80 °C | -30 ~ 80 °C |
| Impact Resistance | Normal | Normal |
