Autonics BJ30-BDT
- Part No.:
- BJ30-BDT
- Manufacturer:
- Autonics
- Category:
- Photoelectric, Industrial
- Package:
- Datasheet:
-
BJ30-BDT.pdf
- Description:
- SENSOR, PHOTO, BGS REFLECTIVE TY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BJ30-BDT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Autonics
- Series:
- BJ
- Packaging:
- Box
- Product Status:
- Active
- Sensing Method:
- Reflective, Background Suppression
- Sensing Distance:
- 0.394" ~ 1.181" (10mm ~ 30mm)
- Voltage - Supply:
- 12V ~ 24V
- Response Time:
- 1ms
- Output Configuration:
- NPN - Open Collector, Light-ON\Dark-ON
- Light Source:
- Red (660nm)
- Connection Method:
- Cable
- Ingress Protection:
- IP65
- Cable Length:
- 78.7" (2000.00mm)
- Adjustment Type:
- Adjustable
- Operating Temperature:
- -25°C ~ 55°C (TA)

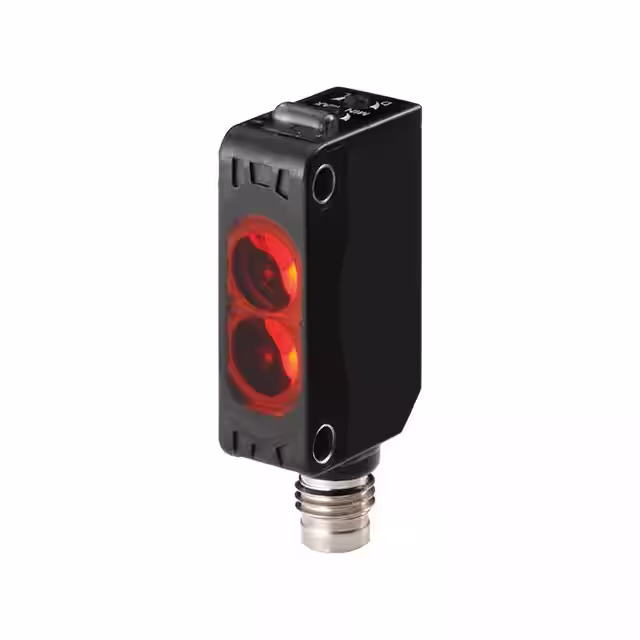

| Image |  |
 |
|
|
 |
| Part Number | BJ300-DDT | BJ300-DDT-P | BJ300-DDT-P | BJ300-DDT | BJ300-DDT-C-P |
| Manufacturer | Autonics | Autonics | Autonics | Autonics | Autonics |
| Series | BJ | BJ | BJ | BJ | BJ |
| Packaging | Bag | Bag | Retail Package | Box | Retail Package |
| Product Status | Active | Active | Active | Active | Active |
| Sensing Method | Reflective, Diffuse | Diffuse | Reflective, Diffuse | Reflective, Diffuse | Reflective, Diffuse |
| Sensing Distance | 11.811" (300mm) | 11.811" (300mm) | 11.811" (300mm) | 11.811" (300mm) | 11.811" (300mm) |
| Voltage - Supply | 12V ~ 24V | 12V ~ 24V | 12V ~ 24V | 12V ~ 24V | 12V ~ 24V |
| Response Time | 1ms | - | 1ms | 1ms | 1ms |
| Output Configuration | NPN - Open Collector, Light-ON\Dark-ON | PNP - Dark-ON/Light-ON | PNP - Open Collector, Light-ON\Dark-ON | NPN - Open Collector, Light-ON\Dark-ON | PNP - Open Collector, Light-ON\Dark-ON |
| Light Source | Red (660nm) | - | Red (660nm) | Red (660nm) | Red (660nm) |
| Connection Method | Cable | - | Cable | Cable | Connector |
| Ingress Protection | IEC IP65 | - | IP65 | IP65 | IP67 |
| Cable Length | 78.74" (2m) | - | 78.74" (2m) | 78.7" (2000.00mm) | - |
| Adjustment Type | Adjustable | - | Adjustable | Adjustable | Adjustable |
| Operating Temperature | -25°C ~ 55°C (TA) | - | -25°C ~ 55°C | -25°C ~ 55°C (TA) | -25°C ~ 55°C |
