Fanstel Corp. BC840
- Part No.:
- BC840
- Manufacturer:
- Fanstel Corp.
- Category:
- RF Transceiver Modules and Modems
- Package:
- 64-SMD Module
- Datasheet:
-
BC840.pdf
- Description:
- RF TXRX MOD 802.15.4 BT TH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BC840 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Fanstel Corp.
- Series:
- -
- Package/Case:
- 64-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- RF Family/Standard:
- 802.15.4, Bluetooth
- Protocol:
- Bluetooth v5.0, Thread, Zigbee®
- Modulation:
- -
- Frequency:
- 2.4GHz
- Data Rate:
- 2Mbps
- Power - Output:
- 8dBm
- Sensitivity:
- -96dBm
- Serial Interfaces:
- ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
- Antenna Type:
- PCB Trace
- Utilized IC / Part:
- nRF52840-CKAA
- Memory Size:
- 1MB Flash, 256kB RAM
- Voltage - Supply:
- 1.7V ~ 5.5V
- Current - Receiving:
- -
- Current - Transmitting:
- -
- Mounting Type:
- Surface Mount
- Operating Temperature:
- -40°C ~ 85°C
| Image |  |
 |
 |
 |
|

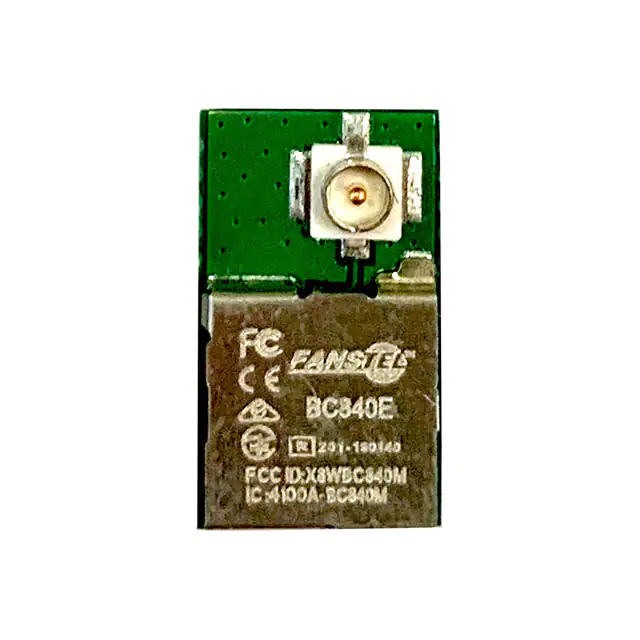

| Part Number | BC840 | BC840M | BC840E | BC840-P | BC840E-P |
| Manufacturer | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. | Fanstel Corp. |
| Series | - | - | - | - | - |
| Package/Case | 64-SMD Module | 64-SMD Module | 64-SMD Module | 64-SMD Module | 64-SMD Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | - | - |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.3, Thread, Zigbee® | Bluetooth v5.3, Thread, Zigbee® |
| Modulation | - | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 8dBm | 8dBm | 8dBm | - | - |
| Sensitivity | -96dBm | -96dBm | -96dBm | - | - |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB | GPIO, I2C, I2S, SPI, UART | GPIO, I2C, I2S, SPI, UART |
| Antenna Type | PCB Trace | PCB Trace | Antenna Not Included, U.FL | PCB Trace | PCB Trace |
| Utilized IC / Part | nRF52840-CKAA | nRF52840-CKAA | nRF52840-CKAA | nRF52840 | nRF52840 |
| Memory Size | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM |
| Voltage - Supply | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Current - Receiving | - | - | - | - | - |
| Current - Transmitting | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
