Diotec Semiconductor BAS70-04W
- Part No.:
- BAS70-04W
- Manufacturer:
- Diotec Semiconductor
- Category:
- Diode Arrays
- Package:
- SC-70, SOT-323
- Description:
- DIODE ARR SCHOTT 70V 70MA SOT323
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BAS70-04W Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diotec Semiconductor
- Series:
- -
- Package/Case:
- SC-70, SOT-323
- Packaging:
- Tube
- Product Status:
- Active
- Diode Configuration:
- 1 Pair Series Connection
- Technology:
- Schottky
- Voltage - DC Reverse (Vr) (Max):
- 70 V
- Current - Average Rectified (Io) (per Diode):
- 70mA
- Voltage - Forward (Vf) (Max) @ If:
- 1 V @ 15 mA
- Speed:
- Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr):
- 5 ns
- Current - Reverse Leakage @ Vr:
- 100 nA @ 50 V
- Operating Temperature - Junction:
- -55°C ~ 150°C
- Grade:
- Automotive
- Qualification:
- AEC-Q101
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-323
| Image |  |
|
 |
 |
 |

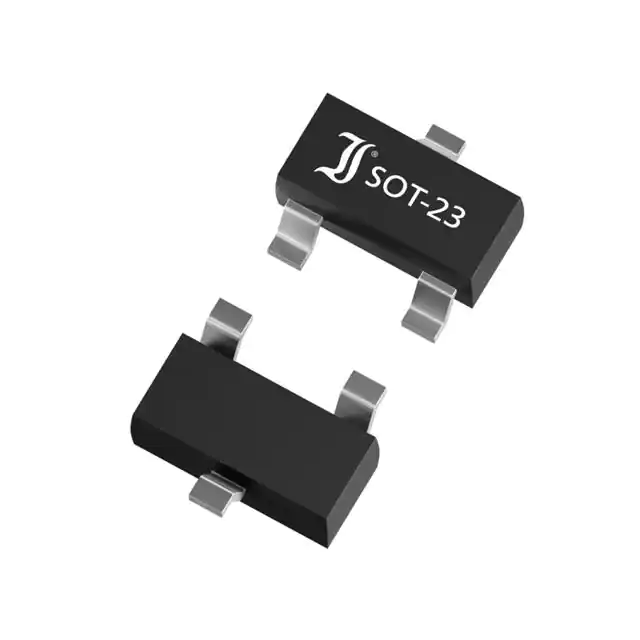

| Part Number | BAS70-05 | BAS70-04 | BAS70-06 | BAS70-04W-AQ | BAS70-04W |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| Series | - | - | - | - | - |
| Package/Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | SC-70, SOT-323 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Series Connection | 1 Pair Common Anode | 1 Pair Series Connection | 1 Pair Series Connection |
| Technology | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 70 V | 70 V | 70 V | 70 V | 70 V |
| Current - Average Rectified (Io) (per Diode) | 70mA | 70mA | 70mA | 70mA | 70mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V | 100 nA @ 50 V | 100 nA @ 50 V | 100 nA @ 50 V | 100 nA @ 50 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Grade | - | - | - | Automotive | Automotive |
| Qualification | - | - | - | AEC-Q101 | AEC-Q101 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) | SOT-23-3 (TO-236) | SOT-23-3 (TO-236) | SOT-323 | SOT-323 |
