Microchip Technology ATSAMD10D14A-MUT
- Part No.:
- ATSAMD10D14A-MUT
- Manufacturer:
- Microchip Technology
- Category:
- Microcontrollers
- Package:
- 24-VFQFN Exposed Pad
- Datasheet:
-
ATSAMD10D14A-MUT.pdf
- Description:
- IC MCU 32BIT 16KB FLASH 24QFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ATSAMD10D14A-MUT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 24-VFQFN Exposed Pad
- Series:
- SAM D10D
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Core Processor:
- ARM® Cortex®-M0+
- Core Size:
- 32-Bit Single-Core
- Speed:
- 48MHz
- Connectivity:
- I2C, LINbus, SPI, UART/USART
- Peripherals:
- Brown-out Detect/Reset, DMA, POR, WDT
- Number of I/O:
- 22
- Program Memory Size:
- 16KB (16K x 8)
- Program Memory Type:
- FLASH
- EEPROM Size:
- -
- RAM Size:
- 4K x 8
- Voltage - Supply (Vcc/Vdd):
- 1.62V ~ 3.63V
- Data Converters:
- A/D 10x12b; D/A 1x10b
- Oscillator Type:
- Internal
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
| Image |  |
 |
|
 |
|

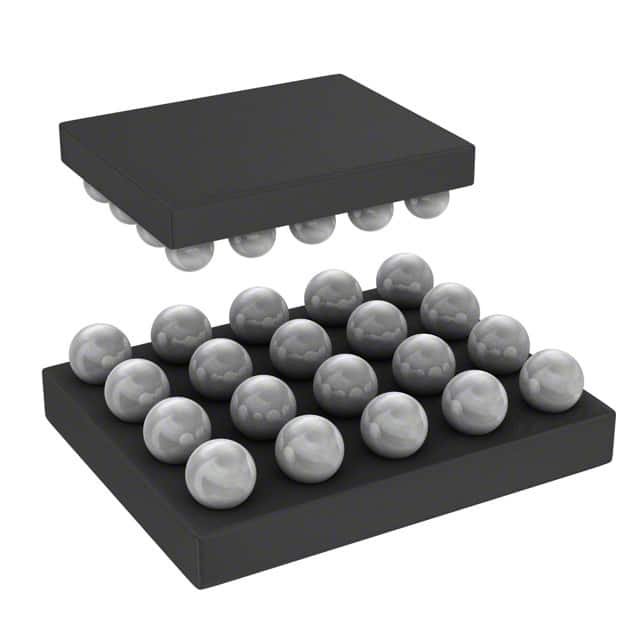

| Part Number | ATSAMD10D14A-MUT | ATSAMD10D14A-SSUT | ATSAMD10D14A-MNT | ATSAMD10D14A-UUT | ATSAMD10D14A-SSNT |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | 24-VFQFN Exposed Pad | 20-SOIC (0.295", 7.50mm Width) | 24-VFQFN Exposed Pad | 20-XFBGA, WLCSP | 20-SOIC (0.295", 7.50mm Width) |
| Series | SAM D10D | SAM D10D | SAM D10D | SAM D10D | SAM D10D |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT | Brown-out Detect/Reset, DMA, POR, WDT |
| Number of I/O | 22 | 18 | 22 | 18 | 18 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | FLASH | FLASH | FLASH | FLASH | FLASH |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V | 1.62V ~ 3.63V |
| Data Converters | A/D 10x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 10x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package |
