Microchip Technology ATSAMA5D29-TA100-CNR
- Part No.:
- ATSAMA5D29-TA100-CNR
- Manufacturer:
- Microchip Technology
- Category:
- Microprocessors
- Package:
- 289-LFBGA
- Datasheet:
-
ATSAMA5D29-TA100-CNR.pdf
- Description:
- SAMA5D29 TA100 SIP,BGA,EXT TEMP,
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ATSAMA5D29-TA100-CNR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Package/Case:
- 289-LFBGA
- Series:
- SAMA5D2
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Core Processor:
- ARM® Cortex®-A5
- Number of Cores/Bus Width:
- 1 Core, 32-Bit
- Speed:
- 500MHz
- Co-Processors/DSP:
- Multimedia; NEON™ MPE
- RAM Controllers:
- DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3
- Graphics Acceleration:
- No
- Display & Interface Controllers:
- LCD
- Ethernet:
- 10/100Mbps (1)
- SATA:
- -
- USB:
- USB (3)
- Voltage - I/O:
- 1.2V, 1.35V, 1.8V
- Operating Temperature:
- -40°C ~ 105°C (TA)
- Grade:
- -
- Qualification:
- -
- Security Features:
- AES, ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 289-LFBGA (14x14)
- Additional Interfaces:
- DMA, EBI, I2C, SPI, SSC, UART/USART
| Image |  |
|
 |

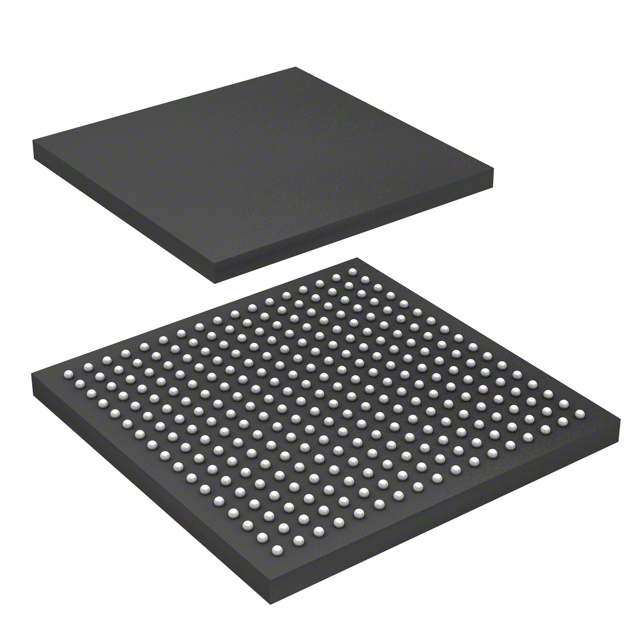

| Part Number | ATSAMA5D29-CN | ATSAMA5D29-CNR | ATSAMA5D29-TA100-CNR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Package/Case | 289-LFBGA | 289-LFBGA | 289-LFBGA |
| Series | SAMA5D2 | SAMA5D2 | SAMA5D2 |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-A5 | ARM® Cortex®-A5 | ARM® Cortex®-A5 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 500MHz | 500MHz | 500MHz |
| Co-Processors/DSP | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE | Multimedia; NEON™ MPE |
| RAM Controllers | DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3 | DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3 | DDR2, DDR3, DDR3L, LPDDR, LPDDR2, LPDDR3 |
| Graphics Acceleration | Yes | Yes | No |
| Display & Interface Controllers | LCD, Touchscreen | LCD, Touchscreen | LCD |
| Ethernet | 10/100Mbps (1) | 10/100Mbps (1) | 10/100Mbps (1) |
| SATA | - | - | - |
| USB | USB (3)+ HSIC (3) | USB (3)+ HSIC (3) | USB (3) |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 3.3V | 1.2V, 1.35V, 1.5V, 1.8V, 3.3V | 1.2V, 1.35V, 1.8V |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Grade | - | - | - |
| Qualification | - | - | - |
| Security Features | AES, ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG | AES, ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG | AES, ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure Memory, Secure RTC, SHA, TDES, TRNG |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 289-LFBGA (14x14) | 289-LFBGA (14x14) | 289-LFBGA (14x14) |
| Additional Interfaces | EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SMC, SPI, UART, USART | EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SMC, SPI, UART, USART | DMA, EBI, I2C, SPI, SSC, UART/USART |
