Broadcom Limited ASMT-QWBF-NKL0E
- Part No.:
- ASMT-QWBF-NKL0E
- Manufacturer:
- Broadcom Limited
- Category:
- LED White Lighting
- Package:
- 4-PLCC
- Description:
- LED COOL WHITE 7250K 4PLCC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ASMT-QWBF-NKL0E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- -
- Package/Case:
- 4-PLCC
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- White, Cool
- CCT (K):
- 7250K (4500K ~ 10000K)
- Flux @ 85°C, Current - Test:
- 42lm
- Flux @ 25°C, Current - Test:
- 49lm
- Current - Test:
- 150mA
- Voltage - Forward (Vf) (Typ):
- 3.3V
- Lumens/Watt @ Current - Test:
- 94 lm/W
- CRI (Color Rendering Index):
- -
- Current - Max:
- 150mA
- Viewing Angle:
- 120°
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-PLCC
- Size / Dimension:
- 0.126" L x 0.110" W (3.20mm x 2.80mm)
- Height - Seated (Max):
- 0.083" (2.10mm)
| Image |  |
 |
 |
 |
|

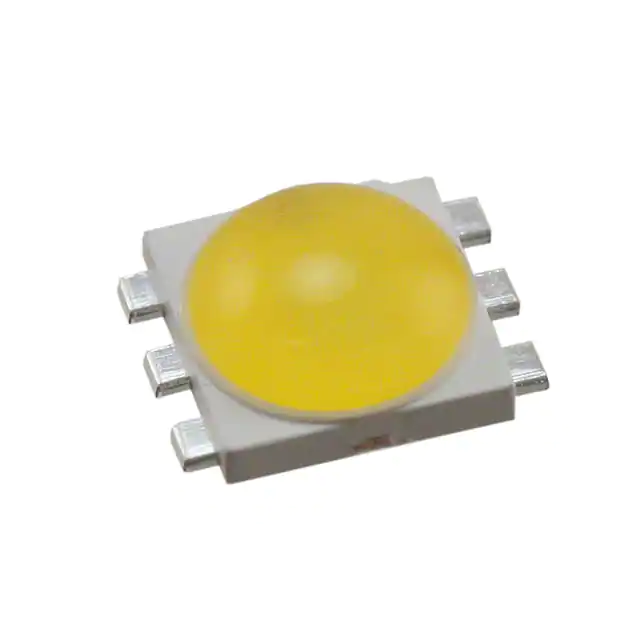

| Part Number | ASMT-QWBF-NKL0E | ASMT-QWBC-NJK0E | ASMT-JW32-NWY01 | ASMT-JN32-NWY01 | ASMT-JY32-NWY01 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | - | - | - | - | - |
| Package/Case | 4-PLCC | 4-PLCC | 1616 (4040 Metric) | 1616 (4040 Metric) | 1616 (4040 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | White, Cool | White, Cool | White, Cool | White, Neutral | White, Warm |
| CCT (K) | 7250K (4500K ~ 10000K) | 7250K (4500K ~ 10000K) | 7250K (4500K ~ 10000K) | 3500K ~ 4500K | 3100K (2700K ~ 3500K) |
| Flux @ 85°C, Current - Test | 42lm | 41lm | - | - | - |
| Flux @ 25°C, Current - Test | 49lm | 45lm (33lm ~ 56lm) | 140lm (114lm ~ 168lm) | 141lm (114lm ~ 168lm) | 130lm (114lm ~ 168lm) |
| Current - Test | 150mA | 150mA | 350mA | 350mA | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.3V | 3.4V | 3.2V | 3.6V | 3.2V |
| Lumens/Watt @ Current - Test | 94 lm/W | 88 lm/W | 125 lm/W | 112 lm/W | 116 lm/W |
| CRI (Color Rendering Index) | - | - | - | - | - |
| Current - Max | 150mA | 150mA | 700mA | 700mA | 700mA |
| Viewing Angle | 120° | 120° | 140° | 140° | 140° |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-PLCC | 4-PLCC | - | - | - |
| Size / Dimension | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.083" (2.10mm) | 0.077" (1.95mm) | 0.077" (1.95mm) | 0.077" (1.95mm) |
