Panasonic Electric Works AQ3A1-C1-ZT12VDC
- Part No.:
- AQ3A1-C1-ZT12VDC
- Manufacturer:
- Panasonic Electric Works
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SIP
- Datasheet:
-
AQ3A1-C1-ZT12VDC.pdf
- Description:
- AQ3A1-C1-ZT12VDC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AQ3A1-C1-ZT12VDC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- AQ8
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Through Hole
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, Zero Cross
- Voltage - Input:
- 12VDC
- Voltage - Load:
- 75 V ~ 125 V
- Load Current:
- 3 A
- On-State Resistance (Max):
- -
- Termination Style:
- PC Pin
- Operating Temperature:
- -30°C ~ 80°C
- Supplier Device Package:
- 4-SIP
- Approval Agency:
- cURus, VDE
- Grade:
- -
- Qualification:
- -

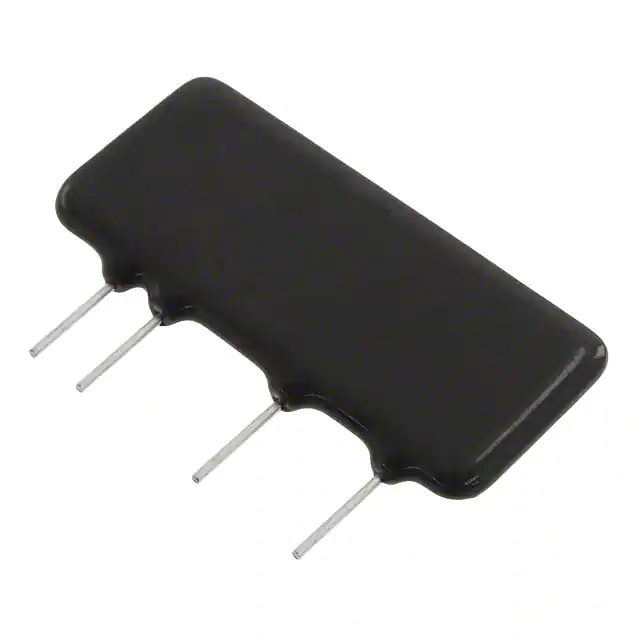

| Image |  |
|
|
|
|
| Part Number | AQ3A1-C1-T24VDC | AQ3A1-C2-ZT5VDC | AQ3A1-C1-T5VDC | AQ3A1-C1-ZT5VDC | AQ3A1-C1-ZT24VDC |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | AQ8 | AQ8 | AQ8 | AQ8 | AQ8 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC | AC, Zero Cross | AC | AC, Zero Cross | AC, Zero Cross |
| Voltage - Input | 21.6 ~ 26.4VDC | 4 ~ 6VDC | 4 ~ 6VDC | 4 ~ 6VDC | 21.6 ~ 26.4VDC |
| Voltage - Load | 75 V ~ 125 V | 75 V ~ 125 V | 75 V ~ 125 V | 75 V ~ 125 V | 75 V ~ 125 V |
| Load Current | 3 A | 3 A | 3 A | 3 A | 3 A |
| On-State Resistance (Max) | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C |
| Supplier Device Package | 4-SIL | 4-SIL | 4-SIL | 4-SIL | 4-SIL |
| Approval Agency | cURus, VDE | cURus, VDE | cURus, VDE | cURus, VDE | cURus, VDE |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
