Panasonic Electronic Components AN7522
- Part No.:
- AN7522
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Audio Amplifiers
- Package:
- 12-SIP + Tab
- Datasheet:
-
AN7522.pdf
- Description:
- IC AMP CLASS AB STEREO 3W 12SIL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AN7522 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- -
- Package/Case:
- 12-SIP + Tab
- Packaging:
- Tube
- Product Status:
- Obsolete
- Type:
- Class AB
- Output Type:
- 2-Channel (Stereo)
- Max Output Power x Channels @ Load:
- 3W x 2 @ 8Ohm
- Voltage - Supply:
- 3.5V ~ 13.5V
- Features:
- Standby, Volume Control
- Mounting Type:
- Through Hole
- Operating Temperature:
- -25°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 12-SIL

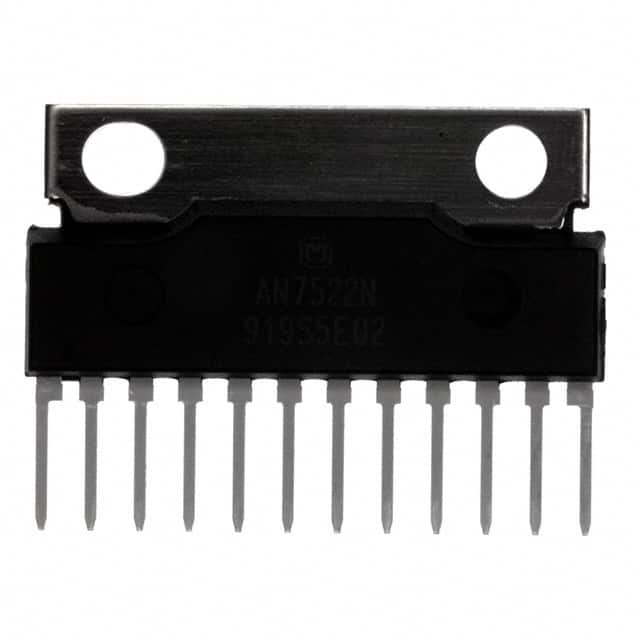

| Image |  |
 |
| Part Number | AN7522N | AN7522 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | - | - |
| Package/Case | 12-SIP + Tab | 12-SIP + Tab |
| Packaging | Bulk | Tube |
| Product Status | Obsolete | Obsolete |
| Type | Class AB | Class AB |
| Output Type | 2-Channel (Stereo) | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 5W x 2 @ 8Ohm | 3W x 2 @ 8Ohm |
| Voltage - Supply | 3.5V ~ 13.5V | 3.5V ~ 13.5V |
| Features | Standby, Volume Control | Standby, Volume Control |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | -25°C ~ 70°C (TA) | -25°C ~ 70°C (TA) |
| Grade | - | - |
| Qualification | - | - |
| Supplier Device Package | 12-SIL | 12-SIL |
