aimtec AMEM5-15S277HAVZ
- Part No.:
- AMEM5-15S277HAVZ
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 5-DIP Module, 4 Leads
- Datasheet:
-
AMEM5-15S277HAVZ.pdf
- Description:
- AC/DC CONVERTER 15V 5W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMEM5-15S277HAVZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AMEM5-277HAVZ (5W)
- Package/Case:
- 5-DIP Module, 4 Leads
- Packaging:
- Product Status:
- Obsolete
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 305 VAC, 100 ~ 430 VDC
- Voltage - Output 1:
- 15V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 333mA
- Power (Watts):
- 5 W
- Applications:
- Household Appliances, ITE (Commercial)
- Features:
- -
- Operating Temperature:
- -40°C ~ 85°C (With Derating)
- Efficiency:
- 81.5%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
- Approval Agency:
- CE, UL
- Standard Number:
- 60335-1; 62368-1

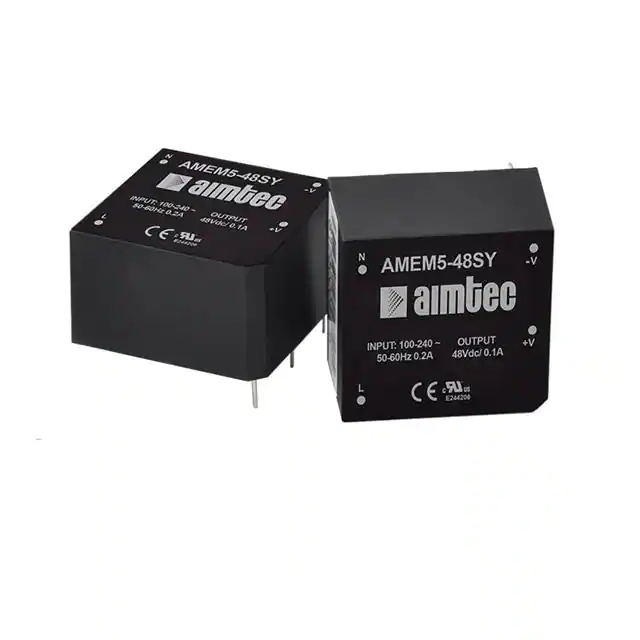

| Image |  |
 |
|
|
|
| Part Number | AMEM5-24SY | AMEM5-5SEZ | AMEM5-15SEZ | AMEM5-24SEZ | AMEM5-3SEZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AMEM5-Y (5W) | AMEM5-EZ (5W) | AMEM5-EZ (5W) | AMEM5-EZ (5W) | AMEM5-EZ (5W) |
| Package/Case | 5-DIP Module | 5-DIP Module | 5-DIP Module | 5-DIP Module | 5-DIP Module |
| Packaging | Tube | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V | 5V | 15V | 24V | 3.3V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 200mA | 1A | 333mA | 208mA | 1.515A |
| Power (Watts) | 5 W | 5 W | 5 W | 5 W | 5 W |
| Applications | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | Universal Input | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) | -25°C ~ 70°C (With Derating) |
| Efficiency | 78% | 80% | 82% | 82% | 73% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.00" L x 1.00" W x 0.60" H (25.4mm x 25.4mm x 15.2mm) | 1.00" L x 1.00" W x 0.63" H (25.4mm x 25.4mm x 16.1mm) | 1.00" L x 1.00" W x 0.63" H (25.4mm x 25.4mm x 16.1mm) | 1.00" L x 1.00" W x 0.63" H (25.4mm x 25.4mm x 16.1mm) | 1.00" L x 1.00" W x 0.63" H (25.4mm x 25.4mm x 16.1mm) |
| Approval Agency | CE, cURus | CE | CE | CE | CE |
| Standard Number | - | 62368-1 | 62368-1 | 62368-1 | 62368-1 |
