aimtec AMEL5-15DMAZ
- Part No.:
- AMEL5-15DMAZ
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 5-DIP Module
- Datasheet:
-
AMEL5-15DMAZ.pdf
- Description:
- AC/DC CONVERTER +/-15V 5.04W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMEL5-15DMAZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AMEL5-MAZ
- Package/Case:
- 5-DIP Module
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 2
- Voltage - Input:
- 90 ~ 264 VAC
- Voltage - Output 1:
- 15V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 168mA, 168mA
- Power (Watts):
- 5.04 W
- Applications:
- ITE (Commercial), Medical
- Features:
- Universal Input
- Operating Temperature:
- -40°C ~ 80°C (With Derating)
- Efficiency:
- 73%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.028" L x 1.102" W (51.50mm x 28.00mm)
- Approval Agency:
- CB, CE, cURus
- Standard Number:
- 60950-1
| Image |  |
 |
 |
 |
 |

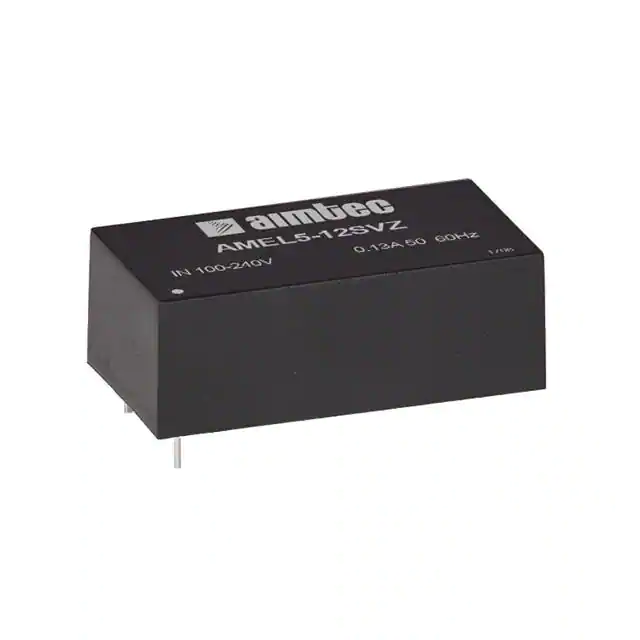

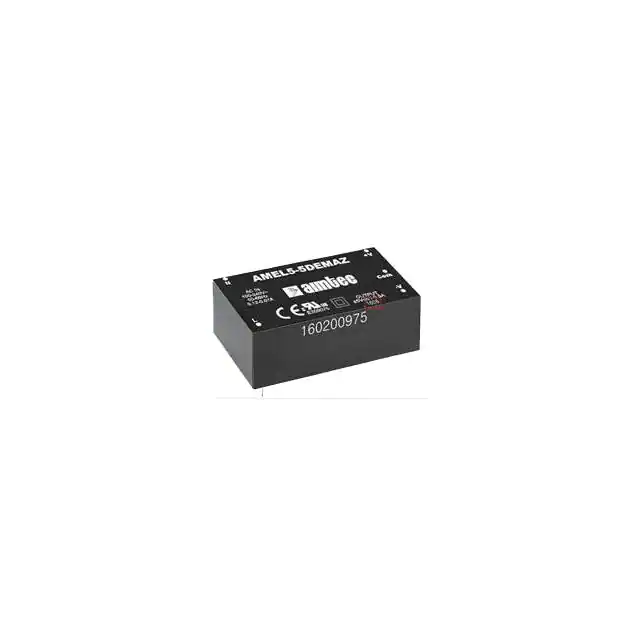

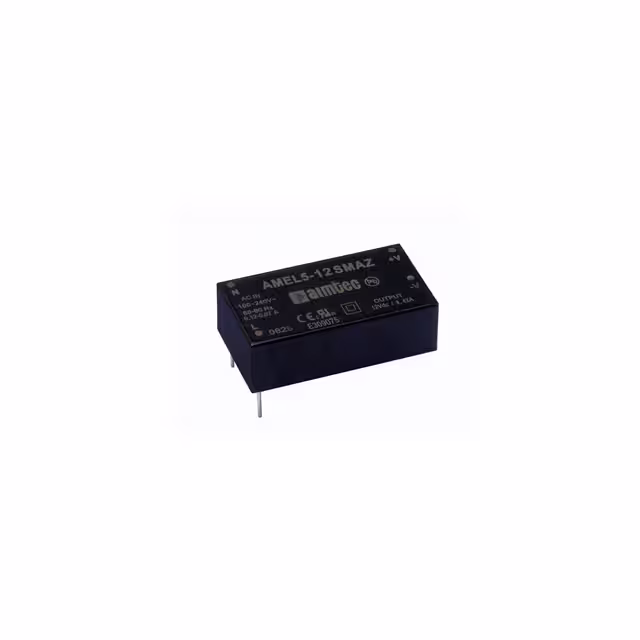

| Part Number | AMEL5-12SAZ | AMEL5-24SMAZ | AMEL5-15SEMAZ | AMEL5-5DEMAZ | AMEL5-9SVZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AMEL5-AZ (5W) | AMEL5-MAZ (5W) | AMEL5-MAZ (5W) | AMEL5-MAZ | AMEL5-VZ (5W) |
| Package/Case | 4-DIP Module | 5-DIP Module | 5-DIP Module | 5-DIP Module | 26-DIP Module, 5 Leads |
| Packaging | Tube | Tube | Tube | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 2 | 1 |
| Voltage - Input | 90 ~ 305 VAC, 130 ~ 430 VDC | 90 ~ 264 VAC | 90 ~ 264 VAC | 90 ~ 264 VAC | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 12V | 24V | 15V | 5V | 9V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 420mA | 210mA | 333mA | 500mA, 500mA | 560mA |
| Power (Watts) | 5 W | 5 W | 5 W | 5 W | 5 W |
| Applications | ITE (Commercial) | ITE (Commercial), Medical | ITE (Commercial), Medical | ITE (Commercial), Medical | ITE (Commercial) |
| Features | - | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -40°C ~ 95°C (With Derating) | -40°C ~ 80°C (With Derating) | -40°C ~ 80°C (With Derating) | -40°C ~ 80°C (With Derating) | -40°C ~ 70°C (With Derating) |
| Efficiency | 76% | 76% | 77% | 72% | 77% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.03" L x 1.11" W x 0.70" H (51.5mm x 28.3mm x 17.8mm) | 2.03" L x 1.10" W x 0.70" H (51.5mm x 28.0mm x 17.8mm) | 2.03" L x 1.10" W x 0.70" H (51.5mm x 28.0mm x 17.8mm) | 2.028" L x 1.102" W (51.50mm x 28.00mm) | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
| Approval Agency | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus | cURus |
| Standard Number | - | - | - | 60950-1 | - |
