aimtec AMEL20-24S277HAVZ
- Part No.:
- AMEL20-24S277HAVZ
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 6-DIP Module, 4 Leads
- Datasheet:
-
AMEL20-24S277HAVZ.pdf
- Description:
- AC/DC CONVERTER 20W MEDICAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMEL20-24S277HAVZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AMEL20-277HAVZ (20W)
- Package/Case:
- 6-DIP Module, 4 Leads
- Packaging:
- Product Status:
- Obsolete
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 305 VAC, 100 ~ 430 VDC
- Voltage - Output 1:
- 24V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 830mA
- Power (Watts):
- 20 W
- Applications:
- Household Appliances, ITE (Commercial), Medical
- Features:
- -
- Operating Temperature:
- -40°C ~ 85°C (With Derating)
- Efficiency:
- 87%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm)
- Approval Agency:
- CE, UL
- Standard Number:
- 60335-1; 60601-1; 62368-1

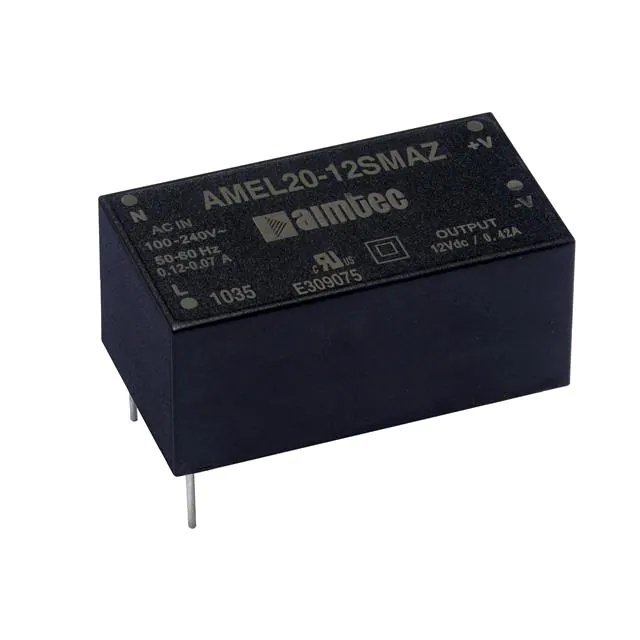

| Image |  |
|
 |
 |
 |
| Part Number | AMEL20-12S277HAVZ | AMEL20-12S277HAVZ-B | AMEL20-15SAZ | AMEL20-24SMAZ | AMEL20-5S277HAVZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AMEL20-277HAVZ (20W) | AMEL20-277HAVZ (20W) | AMEL20-AZ (20W) | AMEL20-MAZ (20W) | AMEL20-277HAVZ (20W) |
| Package/Case | 6-DIP Module, 4 Leads | 6-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 5-DIP Module, 4 Leads | 6-DIP Module, 4 Leads |
| Packaging | Bulk | Box | Tube | Tube | Box |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 90 ~ 305 VAC | 90 ~ 264 VAC, 130 ~ 370 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 12V | 12V | 15V | 24V | 5V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 1.67A | 1.67A | 1.33A | 840mA | 4A |
| Power (Watts) | 20 W | 20 W | 20 W | 20 W | 20 W |
| Applications | Household Appliances, ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical | ITE (Commercial) | ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical |
| Features | - | - | - | Universal Input | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 80°C (With Derating) | -40°C ~ 70°C (With Derating) | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% | 86% | 80% | 79% | 85% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) | 2.22" L x 1.21" W x 0.99" H (56.5mm x 30.9mm x 25.1mm) | 2.22" L x 1.21" W x 0.99" H (56.5mm x 30.9mm x 25.1mm) | 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm) |
| Approval Agency | CE, UL | CE, UL | CB, CE, cURus, FCC | CB, CE, cURus | CE, UL |
| Standard Number | 60335-1; 60601-1; 62368-1 | 60335-1; 60601-1; 62368-1 | - | - | 60335-1; 60601-1; 62368-1 |
