aimtec AMEL15-12S277UNZ-B
- Part No.:
- AMEL15-12S277UNZ-B
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 8-DIP Module, 6 Leads
- Description:
- 3W DC/DC Converter
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMEL15-12S277UNZ-B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AMEL15-277UNZ (3W)
- Package/Case:
- 8-DIP Module, 6 Leads
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 305 VAC, 100 ~ 430 VDC
- Voltage - Output 1:
- 12V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 1.25A
- Power (Watts):
- 15 W
- Applications:
- ITE (Commercial)
- Features:
- Universal Input
- Operating Temperature:
- -25°C ~ 85°C (With Derating)
- Efficiency:
- 80%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm)
- Approval Agency:
- -
- Standard Number:
- 62368-1

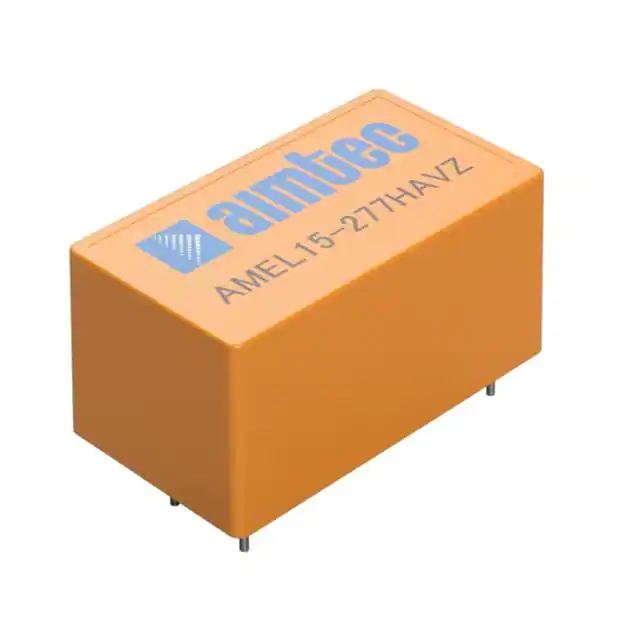

| Image |  |
|
|
|
 |
| Part Number | AMEL15-12S277HAVZ | AMEL15-9S277HAVZ | AMEL15-3S277HAVZ | AMEL15-24S277HAVZ | AMEL15-15S277HAVZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AMEL15-277HAVZ | AMEL15-277HAVZ | AMEL15-277HAVZ | AMEL15-277HAVZ | AMEL15-277HAVZ |
| Package/Case | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 12V | 9V | 3.3V | 24V | 15V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 1.25A | 1.67A | 4A | 625mA | 1A |
| Power (Watts) | 15 W | 15 W | 13 W | 15 W | 15 W |
| Applications | Household Appliances, ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical | Household Appliances, ITE (Commercial), Medical |
| Features | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) |
| Efficiency | 85% | 84% | 82% | 86% | 85% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.87" L x 1.06" W x 0.92" H (47.6mm x 26.8mm x 23.5mm) | 1.87" L x 1.06" W x 0.92" H (47.6mm x 26.8mm x 23.5mm) | 1.87" L x 1.06" W x 0.92" H (47.6mm x 26.8mm x 23.5mm) | 1.87" L x 1.06" W x 0.92" H (47.6mm x 26.8mm x 23.5mm) | 1.87" L x 1.06" W x 0.92" H (47.6mm x 26.8mm x 23.5mm) |
| Approval Agency | CE, UL | CE, UL | CE, UL | CE, UL | CE, UL |
| Standard Number | 60335-1; 60601-1; 62368-1 | 60335-1; 60601-1; 62368-1 | 60335-1; 60601-1; 62368-1 | 60335-1; 60601-1; 62368-1 | 60335-1; 60601-1; 62368-1 |
