aimtec AME25-5S277PEVZ-B
- Part No.:
- AME25-5S277PEVZ-B
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 10-DIP Module, 6 Leads
- Datasheet:
-
AME25-5S277PEVZ-B.pdf
- Description:
- 2W DC/DC Converter
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AME25-5S277PEVZ-B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AME25-277PEVZ (2W)
- Package/Case:
- 10-DIP Module, 6 Leads
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 85 ~ 305 VAC, 100 ~ 430 VDC
- Voltage - Output 1:
- 5V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 4.1A
- Power (Watts):
- 21 W
- Applications:
- ITE (Commercial)
- Features:
- Adjustable Output, Universal Input
- Operating Temperature:
- -40°C ~ 85°C (With Derating)
- Efficiency:
- 82%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm)
- Approval Agency:
- -
- Standard Number:
- 62368-1
| Image |  |
 |
 |
|
|

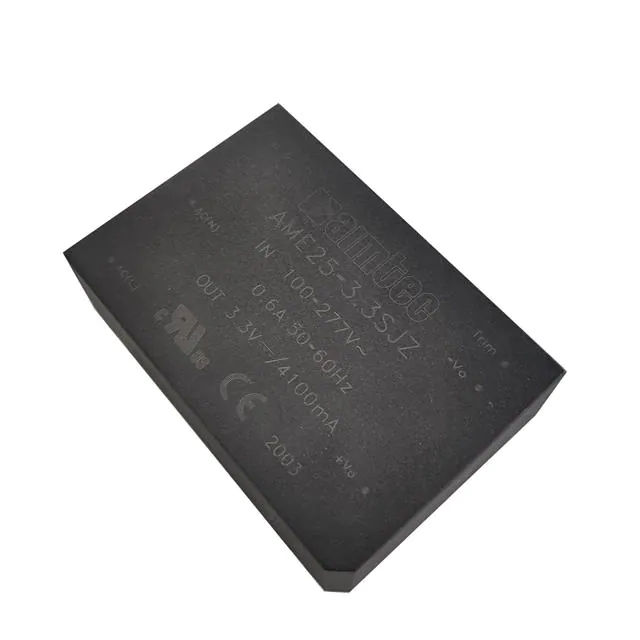

| Part Number | AME25-12S277PEVZ | AME25-3.3SJZ | AME25-15SMJZ | AME25-48S277PEVZ | AME25-24S277PEVZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AME25-277PEVZ (2W) | AME25-JZ (25W) | AME25-MJZ (25W) | AME25-277PEVZ (2W) | AME25-277PEVZ (2W) |
| Package/Case | 10-DIP Module, 6 Leads | 6-DIP Module | 8-DIP Module, 4 Leads | 10-DIP Module, 6 Leads | 10-DIP Module, 6 Leads |
| Packaging | Box | Bulk | Box | Box | Box |
| Product Status | Obsolete | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC | 85 ~ 264 VAC, 100 ~ 370 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Voltage - Output 1 | 12V | 3.3V | 15V | 48V | 24V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 2.1A | 4.1A | 1.6A | 500mA | 1.1A |
| Power (Watts) | 25 W | 25 W | 24 W | 24 W | 26 W |
| Applications | ITE (Commercial) | ITE (Commercial) | Medical | ITE (Commercial) | ITE (Commercial) |
| Features | Adjustable Output, Universal Input | - | Universal Input | Adjustable Output, Universal Input | Adjustable Output, Universal Input |
| Operating Temperature | -40°C ~ 85°C (With Derating) | -40°C ~ 70°C (With Derating) | -40°C ~ 70°C (With Derating) | -40°C ~ 85°C (With Derating) | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% | 75% | 88% | 87% | 85% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) |
| Approval Agency | - | CE, cURus | - | - | - |
| Standard Number | 62368-1 | - | - | 62368-1 | 62368-1 |
