aimtec AME1-24SJZ
- Part No.:
- AME1-24SJZ
- Manufacturer:
- aimtec
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Datasheet:
-
AME1-24SJZ.pdf
- Description:
- AC/DC CONVERTER 24V 1W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AME1-24SJZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- aimtec
- Series:
- AME1-JZ (1W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 120 ~ 305 VAC
- Voltage - Output 1:
- 24V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 42mA
- Power (Watts):
- 1 W
- Applications:
- ITE (Commercial)
- Features:
- -
- Operating Temperature:
- -25°C ~ 70°C (With Derating)
- Efficiency:
- 75%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 1.33" L x 0.87" W x 0.71" H (33.7mm x 22.2mm x 18.0mm)
- Approval Agency:
- CE, cULus, cURus
- Standard Number:
- -
| Image |  |
 |
|
 |
 |

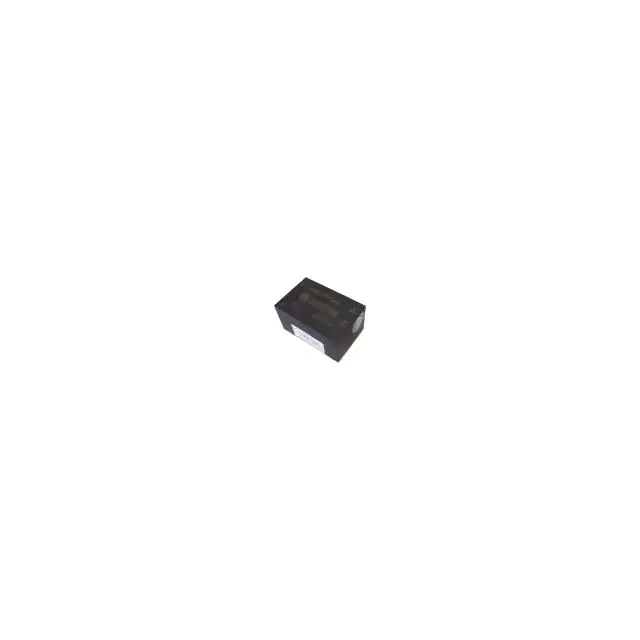

| Part Number | AME1-24SBAZ | AME15-12SMAZ | AME1-5SAZ | AME10-24SBJZ | AME10-5DCVZ |
| Manufacturer | aimtec | aimtec | aimtec | aimtec | aimtec |
| Series | AME1-AZ (1W) | AME15-MAZ (15W) | AME1-AZ (1W) | AME10-BJZ (10W) | AME10-CVZ (10W) |
| Package/Case | 4-DIP Module | 6-DIP Module, 4 Leads | 4-DIP Module | 4-DIP Module | 8-DIP Module |
| Packaging | Tube | Bulk | Tube | Box | Box |
| Product Status | Obsolete | Active | Active | Active | Obsolete |
| Type | Enclosed | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 | 2 |
| Voltage - Input | 90 ~ 528 VAC | 90 ~ 264 VAC, 130 ~ 370 VDC | 90 ~ 305 VAC, 130 ~ 430 VDC | 90 ~ 528 VAC, 100 ~ 745 VDC | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 24V | 12V | 5V | 24V | 5V |
| Voltage - Output 2 | - | - | - | - | - |
| Voltage - Output 3 | - | - | - | - | - |
| Voltage - Output 4 | - | - | - | - | - |
| Current - Output (Max) | 42mA | 1.25A | 200mA | 450mA | 1A, 1A |
| Power (Watts) | 1 W | 15 W | 1 W | 11 W | 10 W |
| Applications | ITE (Commercial) | ITE (Commercial), Medical | ITE (Commercial) | ITE (Commercial) | ITE (Commercial) |
| Features | - | Universal Input | - | - | Universal Input |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 85°C (With Derating) | -40°C ~ 80°C | -40°C ~ 70°C (With Derating) | -40°C ~ 70°C (With Derating) |
| Efficiency | 55% | 79% | 58% | 82% | 76% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 1.40" L x 0.92" W x 0.76" H (35.6mm x 23.3mm x 19.3mm) | 2.56" L x 1.83" W x 0.83" H (65.0mm x 46.5mm x 21.0mm) | 1.40" L x 0.92" W x 0.76" H (35.6mm x 23.3mm x 19.3mm) | 2.44" L x 1.77" W x 1.18" H (62.0mm x 45.0mm x 30.0mm) | 2.17" L x 1.77" W x 0.82" H (55.0mm x 45.0mm x 21.0mm) |
| Approval Agency | CE, cURus, FCC | CB, CE, cURus | CE, cURus, FCC | CE | - |
| Standard Number | - | - | - | - | 62368-1 |
