Orient Display AMC1602GR-B-Y6NFDY
- Part No.:
- AMC1602GR-B-Y6NFDY
- Manufacturer:
- Orient Display
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
AMC1602GR-B-Y6NFDY.pdf
- Description:
- LCD COB CHAR 16X2 Y/G TRANSF
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AMC1602GR-B-Y6NFDY Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Orient Display
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of Characters:
- 32.0
- Display Format:
- 16 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Transflective
- Character Size:
- 5.55mm H x 2.95mm W
- Outline L x W x H:
- 84.00mm x 44.00mm x 14.00mm
- Viewing Area:
- 64.50mm L x 15.50mm W
- Backlight:
- LED - Yellow/Green
- Voltage - Supply:
- 4.5V ~ 5.5V
- Dot Size:
- 0.55mm W x 0.65mm H
- Interface:
- Parallel, 8-Bit
- Controller Type:
- S6A0069
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- Dark Blue
- Background Color:
- Yellow/Green

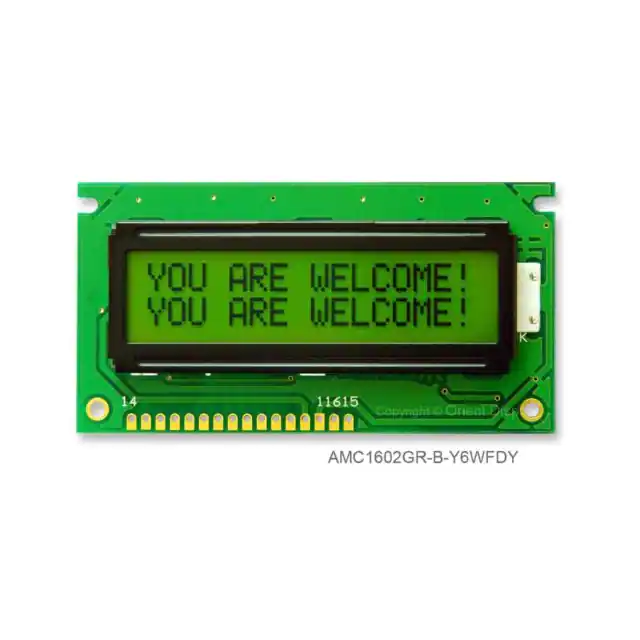

| Image |  |
 |
 |
| Part Number | AMC1602GR-B-B6WTDW | AMC1602GR-B-Y6WFDY | AMC1602GR-B-Y6NFDY |
| Manufacturer | ORIENT DISPLAY | ORIENT DISPLAY | Orient Display |
| Series | - | - | - |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Number of Characters | 32.0 | 32.0 | 32.0 |
| Display Format | 16 x 2 | 16 x 2 | 16 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic |
| Display Mode | Transmissive | Transflective | Transflective |
| Character Size | 5.55mm H x 2.95mm W | 5.55mm H x 2.95mm W | 5.55mm H x 2.95mm W |
| Outline L x W x H | 84.00mm x 44.00mm x 14.00mm | 84.00mm x 44.00mm x 14.00mm | 84.00mm x 44.00mm x 14.00mm |
| Viewing Area | 64.50mm L x 15.50mm W | 64.50mm L x 15.50mm W | 64.50mm L x 15.50mm W |
| Backlight | LED - White | LED - Yellow/Green | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.65mm H | 0.55mm W x 0.65mm H | 0.55mm W x 0.65mm H |
| Interface | Parallel, 8-Bit | Parallel, 8-Bit | Parallel, 8-Bit |
| Controller Type | S6A0069 | S6A0069 | S6A0069 |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | White | Dark Blue | Dark Blue |
| Background Color | Blue | Yellow/Green | Yellow/Green |
