Abracon LLC ALANS10002-6N11JT
- Part No.:
- ALANS10002-6N11JT
- Manufacturer:
- Abracon LLC
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
ALANS10002-6N11JT.pdf
- Description:
- DUAL 10/100/1000BASE-T LAN XFMR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ALANS10002-6N11JT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ALANS10002
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Transformer Type:
- LAN 10/100/1000 Base-T
- Inductance:
- 350µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:1CT Transmitter, 1CT:1CT Receiver
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 1.095" L x 0.480" W (27.81mm x 12.19mm)
- Height - Seated (Max):
- 0.285" (7.24mm)
- Operating Temperature:
- -40°C ~ 105°C
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
|
|

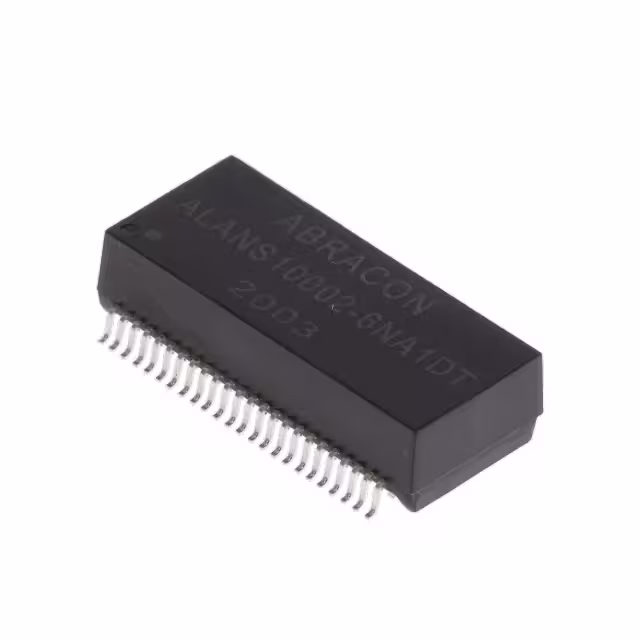

| Part Number | ALANS10002-6NA1ET | ALANS10002-6NA1DT | ALANS10002-7P11KT | ALANS10002-6N41DT | ALANS10002-6N11JT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ALANS10002 | ALANS10002 | ALANS10002 | ALANS10002 | ALANS10002 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Transformer Type | LAN 10/100/1000 Base-T | LAN 10/100/1000 Base-T | LAN 10/100/1000 Base-T | LAN 10/100/1000 Base-T | LAN 10/100/1000 Base-T |
| Inductance | 350µH | 350µH | 350µH | 350µH | 350µH |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 1.095" L x 0.480" W (27.81mm x 12.19mm) |
| Height - Seated (Max) | 0.285" (7.24mm) | 0.285" (7.24mm) | 0.341" (8.66mm) | 0.285" (7.24mm) | 0.285" (7.24mm) |
| Operating Temperature | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
