Abracon LLC ALAN-101-T
- Part No.:
- ALAN-101-T
- Manufacturer:
- Abracon LLC
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
ALAN-101-T.pdf
- Description:
- LAN XFRMR 10/100 1PORT EXT-TEMP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ALAN-101-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ALAN-101
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Transformer Type:
- LAN 10/100 Base-T
- Inductance:
- 350µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1CT:1CT
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.504" L x 0.272" W (12.80mm x 6.90mm)
- Height - Seated (Max):
- 0.217" (5.51mm)
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
|

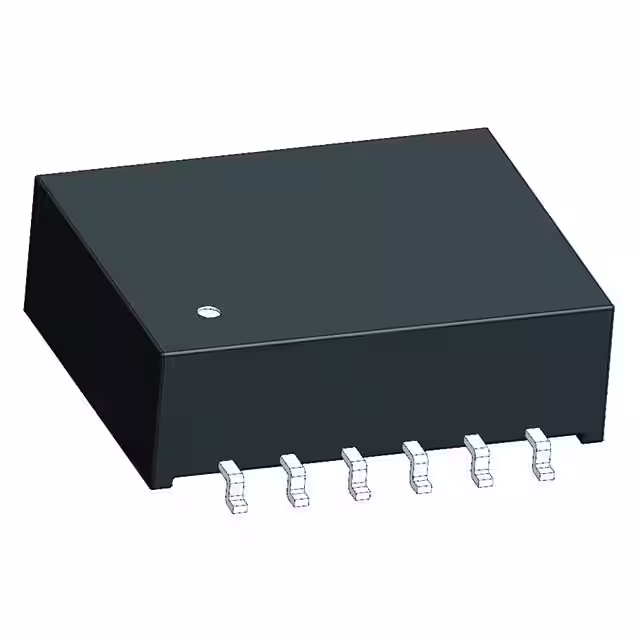

| Part Number | ALANL100X1-DE12DT | ALAN-101-T | ALANS100X1-2F00DT | ALANL100X1-EF10ET | ALANL100X1-EF62DT |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ALANL100X1-D | ALAN-101 | ALANS100X1-2 | ALANL100X1-E | ALANL100X1-E |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Transformer Type | LAN 10/100 Base-T | LAN 10/100 Base-T | - | LAN 10/100 Base-T | LAN 10/100 Base-T |
| Inductance | 350µH | 350µH | 350µH | 350µH | 350µH |
| ET (Volt-Time) | - | - | - | - | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT | 1CT:1CT | 1CT:1CT Transmitter, 1CT:1CT Receiver | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.500" L x 0.280" W (12.70mm x 7.11mm) |
| Height - Seated (Max) | 0.085" (2.16mm) | 0.217" (5.51mm) | 0.222" (5.65mm) | 0.085" (2.15mm) | 0.085" (2.16mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
