Broadcom Limited AEDT-9810-A00
- Part No.:
- AEDT-9810-A00
- Manufacturer:
- Broadcom Limited
- Category:
- Encoders
- Package:
- Datasheet:
-
AEDT-9810-A00.pdf
- Description:
- ROTARY ENCODER OPTICAL 500PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AEDT-9810-A00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Optical
- Output Type:
- Quadrature with Index (Incremental)
- Pulses per Revolution:
- 500
- Voltage - Supply:
- 4.5V ~ 5.5V
- Actuator Type:
- Codewheel Not Included
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- Chassis Mount
- Orientation:
- User Selectable
- Termination Style:
- Terminal Pins
- Rotational Life (Cycles Min):
- -
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
 |
|

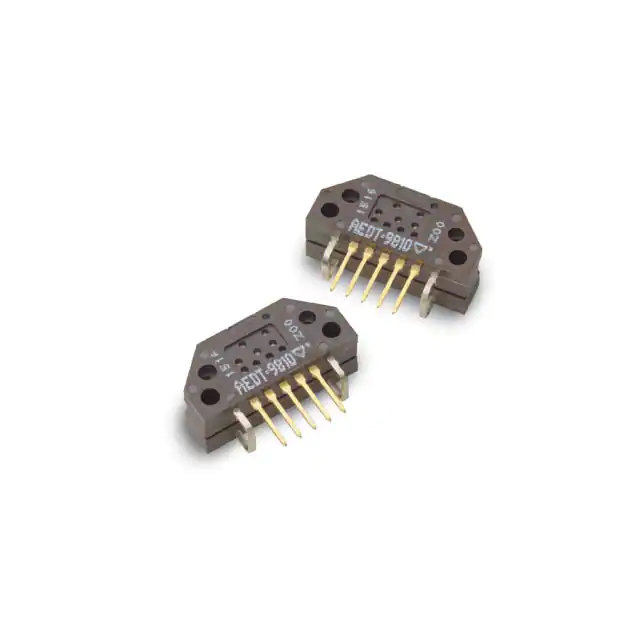

| Part Number | AEDT-9810-W00 | AEDT-9810-Z00 | AEDT-9140-B0B | AEDT-9140-C00 | AEDT-9140-E00 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | - | - | AEDT-9140 | AEDT-9140 | AEDT-9140 |
| Packaging | Tube | Bulk | Tube | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Optical | Optical | Optical | Optical | Optical |
| Output Type | Quadrature with Index (Incremental) | Quadrature with Index (Incremental) | Quadrature with Index (Incremental) | Quadrature with Index (Incremental) | Quadrature with Index (Incremental) |
| Pulses per Revolution | 2500 | 5000 | 1000 | 100 | 200 |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 5V | 5V | 5V |
| Actuator Type | Codewheel Not Included | Codewheel Not Included | Codewheel Not Included | Codewheel Not Included | Codewheel Not Included |
| Detent | No | No | No | No | No |
| Built in Switch | No | No | No | No | No |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Orientation | User Selectable | User Selectable | - | - | - |
| Termination Style | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins | Terminal Pins |
| Rotational Life (Cycles Min) | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
