Analog Devices Inc. AD9609-20EBZ
- Part No.:
- AD9609-20EBZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
AD9609-20EBZ.pdf
- Description:
- BOARD EVALUATION AD9609 20MSPS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AD9609-20EBZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 1
- Number of Bits:
- 10
- Sampling Rate (Per Second):
- 20M
- Data Interface:
- SPI
- Input Range:
- 2Vpp
- Power (Typ) @ Conditions:
- 46.3mW @ 20MSPS
- Utilized IC / Part:
- AD9609
- Contents:
- Board(s)
| Image |  |
 |
|
|

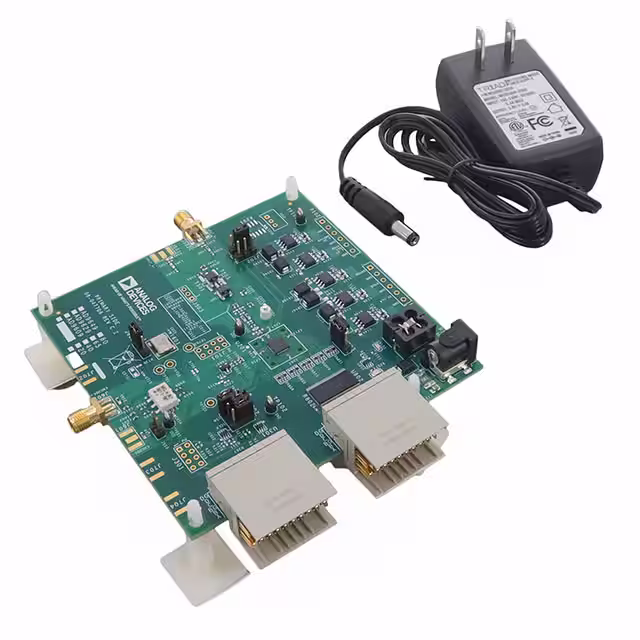

| Part Number | AD9609-80EBZ | AD9609-65EBZ | AD9609-20EBZ | AD9609-40EBZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Obsolete | Active | Active |
| Number of A/D Converters | 1 | 1 | 1 | 1 |
| Number of Bits | 10 | 10 | 10 | 10 |
| Sampling Rate (Per Second) | 80M | 65M | 20M | 40M |
| Data Interface | SPI | SPI | SPI | SPI |
| Input Range | 2Vpp | 2Vpp | 2Vpp | 2Vpp |
| Power (Typ) @ Conditions | 83mW @ 80MSPS | 73.3mW @ 65MSPS | 46.3mW @ 20MSPS | 57.4mW @ 40MSPS |
| Utilized IC / Part | AD9609 | AD9609 | AD9609 | AD9609 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) |
