Analog Devices Inc. AD9234-LF500EBZ
- Part No.:
- AD9234-LF500EBZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
AD9234-LF500EBZ.pdf
- Description:
- EVAL BOARD FOR AD9234-500EBZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AD9234-LF500EBZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Number of A/D Converters:
- 2
- Number of Bits:
- 12
- Sampling Rate (Per Second):
- 500M
- Data Interface:
- JESD204B, Serial
- Input Range:
- 1.63Vpp
- Power (Typ) @ Conditions:
- 2.15W @ 1GSPS
- Utilized IC / Part:
- AD9234
- Contents:
- Board(s)
| Image |  |
 |
 |
 |

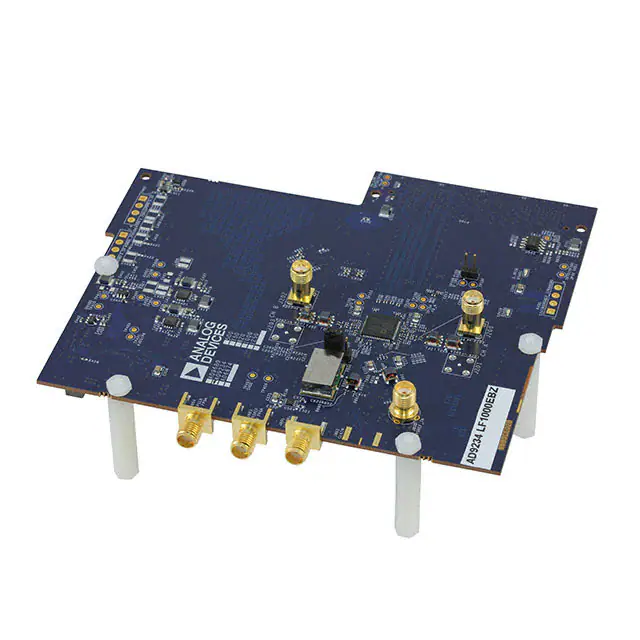

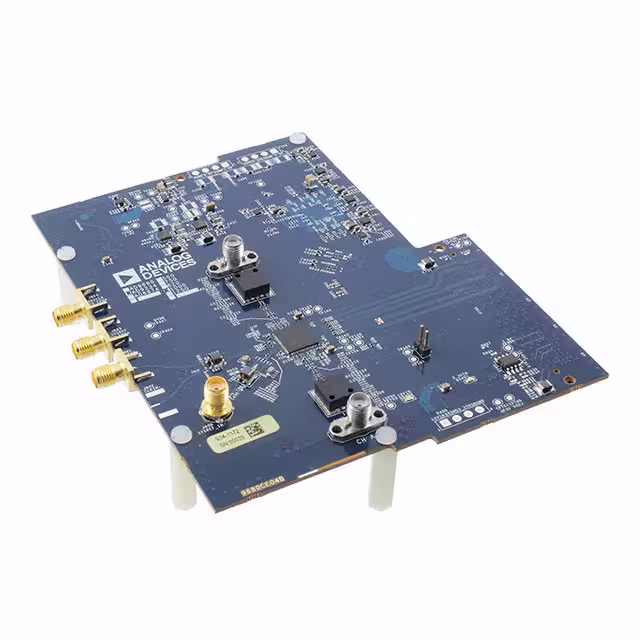

| Part Number | AD9234-LF1000EBZ | AD9234-1000EBZ | AD9234-LF500EBZ | AD9234-500EBZ |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Bulk |
| Product Status | Active | Active | Active | Active |
| Number of A/D Converters | 2 | 2 | 2 | 2 |
| Number of Bits | 12 | 12 | 12 | 12 |
| Sampling Rate (Per Second) | 1G | 1G | 500M | 500M |
| Data Interface | JESD204B, Serial | JESD204B, Serial | JESD204B, Serial | JESD204B, Serial |
| Input Range | 1.34Vpp | 1.34Vpp | 1.63Vpp | 1.63Vpp |
| Power (Typ) @ Conditions | 3W @ 1GSPS | 3W @ 1GSPS | 2.15W @ 1GSPS | 2.15W @ 1GSPS |
| Utilized IC / Part | AD9234 | AD9234 | AD9234 | AD9234 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) |
