Coto Technology 9402-05-20
- Part No.:
- 9402-05-20
- Manufacturer:
- Coto Technology
- Category:
- High Frequency (RF) Relays
- Package:
- Datasheet:
-
9402-05-20.pdf
- Description:
- RELAY RF SPST-NO 500MA 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
9402-05-20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Coto Technology
- Series:
- 9400
- Packaging:
- Tube
- Product Status:
- Active
- Coil Type:
- Non Latching
- Coil Current:
- 25 mA
- Coil Voltage:
- 5VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 500 mA
- Switching Voltage:
- 200VAC, 200VDC - Max
- Must Operate Voltage:
- 3.75 VDC
- Must Release Voltage:
- 0.4 VDC
- Operate Time:
- 0.4 ms
- Release Time:
- 0.2 ms
- Features:
- -
- Mounting Type:
- Surface Mount
- Termination Style:
- J Lead
- Operating Temperature:
- -20°C ~ 85°C

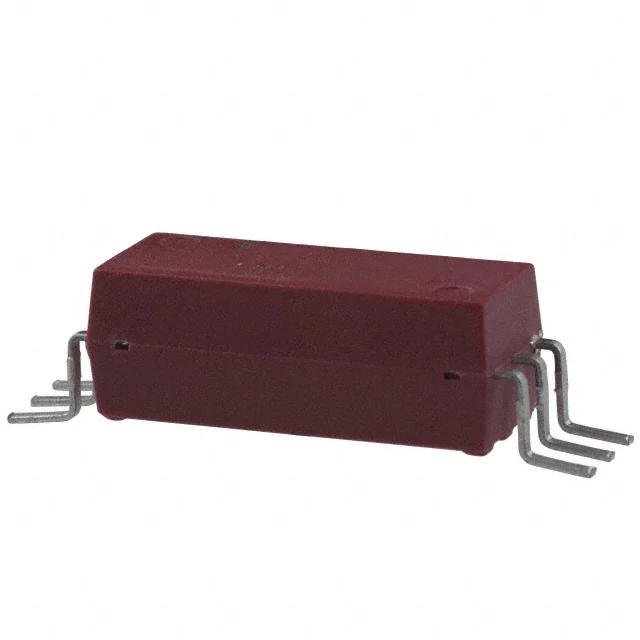

| Image |  |
 |
|
|
|
| Part Number | 9402-05-20 | 9402-05-00TR | 9402-12-00 | 9402-05-20TR | 9402-05-00 |
| Manufacturer | Coto Technology | Coto Technology | Coto Technology | Coto Technology | Coto Technology |
| Series | 9400 | 9400 | 9400 | 9400 | 9400 |
| Packaging | Tube | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Coil Current | 25 mA | 25 mA | 14.5 mA | 25 mA | 25 mA |
| Coil Voltage | 5VDC | 5VDC | 12VDC | 5VDC | 5VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA | 500 mA | 500 mA | 500 mA | 500 mA |
| Switching Voltage | 200VAC, 200VDC - Max | 200VAC, 200VDC - Max | 200VAC, 200VDC - Max | 200VAC, 200VDC - Max | 200VAC, 200VDC - Max |
| Must Operate Voltage | 3.75 VDC | 3.75 VDC | 9 VDC | 3.75 VDC | 3.75 VDC |
| Must Release Voltage | 0.4 VDC | 0.4 VDC | 1 VDC | 0.4 VDC | 0.4 VDC |
| Operate Time | 0.4 ms | 0.4 ms | 0.4 ms | 0.4 ms | 0.4 ms |
| Release Time | 0.2 ms | 0.2 ms | 0.2 ms | 0.2 ms | 0.2 ms |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | J Lead | Gull Wing | Gull Wing | J Lead | Gull Wing |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
- Include Parts
- Popular Search
The following parts include "9402-05-20" in Silicon Labs 9402-05-20.
- Part Number
- Manufacturer
- Package
- Description
- 9002-05-00 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9002-05-01 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9002-05-10 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9202-05-20 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9002-05-11 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9402-05-20 Coto Technology RELAY RF SPST-NO 500MA 5V
- 9814-05-20 Coto Technology RELAY RF SPST-NO 250MA 5V
- 9814-05-00TR Coto Technology RELAY RF SPST-NO 250MA 5V
- 9290-05-00TR Coto Technology RELAY RF SPST-NO 500MA 5V
- CRF05-1A Standex-Meder Electronics RELAY RF SPST-NO 500MA 5V
