Nexperia USA Inc. 74LVC1G74GT-Q100X
- Part No.:
- 74LVC1G74GT-Q100X
- Manufacturer:
- Nexperia USA Inc.
- Category:
- Flip Flops
- Package:
- 8-XFDFN
- Datasheet:
-
74LVC1G74GT-Q100X.pdf
- Description:
- IC FF D-TYPE SNGL 1BIT 8XSON
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
74LVC1G74GT-Q100X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nexperia USA Inc.
- Series:
- 74LVC
- Package/Case:
- 8-XFDFN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Function:
- Set(Preset) and Reset
- Type:
- D-Type
- Output Type:
- Complementary
- Number of Elements:
- 1
- Number of Bits per Element:
- 1
- Clock Frequency:
- 200 MHz
- Max Propagation Delay @ V, Max CL:
- 4.1ns @ 5V, 50pF
- Trigger Type:
- Positive Edge
- Current - Output High, Low:
- 32mA, 32mA
- Voltage - Supply:
- 1.65V ~ 5.5V
- Current - Quiescent (Iq):
- 4 µA
- Input Capacitance:
- 4 pF
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-XSON, SOT833-1 (1.95x1)

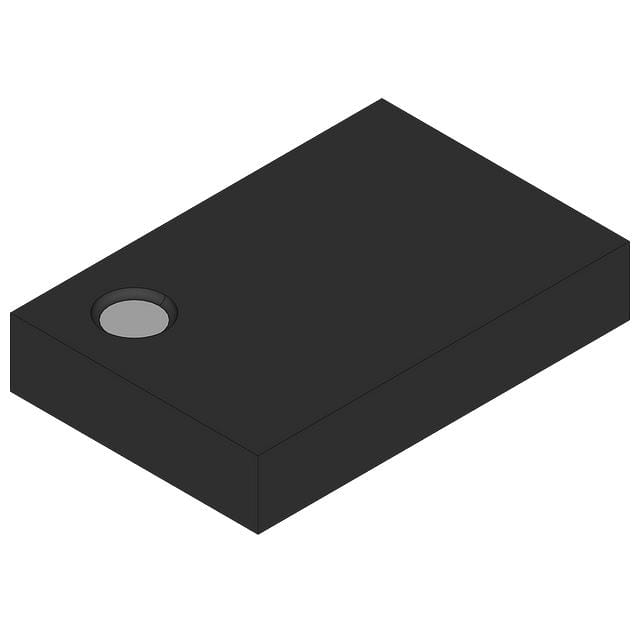

| Image |  |
 |
 |
| Part Number | 74LVC1G74GT,115 | 74LVC1G74GT-Q100X | 74LVC1G74GT/S505,115 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Series | 74LVC | 74LVC | 74LVC |
| Package/Case | 8-XFDFN | 8-XFDFN | 8-XFDFN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active |
| Function | Set(Preset) and Reset | Set(Preset) and Reset | Set(Preset) and Reset |
| Type | D-Type | D-Type | D-Type |
| Output Type | Complementary | Complementary | Complementary |
| Number of Elements | 1 | 1 | 1 |
| Number of Bits per Element | 1 | 1 | 1 |
| Clock Frequency | 200 MHz | 200 MHz | 200 MHz |
| Max Propagation Delay @ V, Max CL | 4.1ns @ 5V, 50pF | 4.1ns @ 5V, 50pF | 4.1ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA | 4 µA | 4 µA |
| Input Capacitance | 4 pF | 4 pF | 4 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Grade | - | Automotive | - |
| Qualification | - | AEC-Q100 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-XSON, SOT833-1 (1.95x1) | 8-XSON, SOT833-1 (1.95x1) | 8-XSON (1.95x1) |
