Nexperia USA Inc. 74HC174D,653
- Part No.:
- 74HC174D,653
- Manufacturer:
- Nexperia USA Inc.
- Category:
- Flip Flops
- Package:
- 16-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
74HC174D,653.pdf
- Description:
- IC FF D-TYPE SNGL 6BIT 16SO
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
74HC174D,653 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Nexperia USA Inc.
- Series:
- 74HC
- Package/Case:
- 16-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Function:
- Master Reset
- Type:
- D-Type
- Output Type:
- Non-Inverted
- Number of Elements:
- 1
- Number of Bits per Element:
- 6
- Clock Frequency:
- 107 MHz
- Max Propagation Delay @ V, Max CL:
- 28ns @ 6V, 50pF
- Trigger Type:
- Positive Edge
- Current - Output High, Low:
- 5.2mA, 5.2mA
- Voltage - Supply:
- 2V ~ 6V
- Current - Quiescent (Iq):
- 8 µA
- Input Capacitance:
- 3.5 pF
- Operating Temperature:
- -40°C ~ 125°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 16-SO

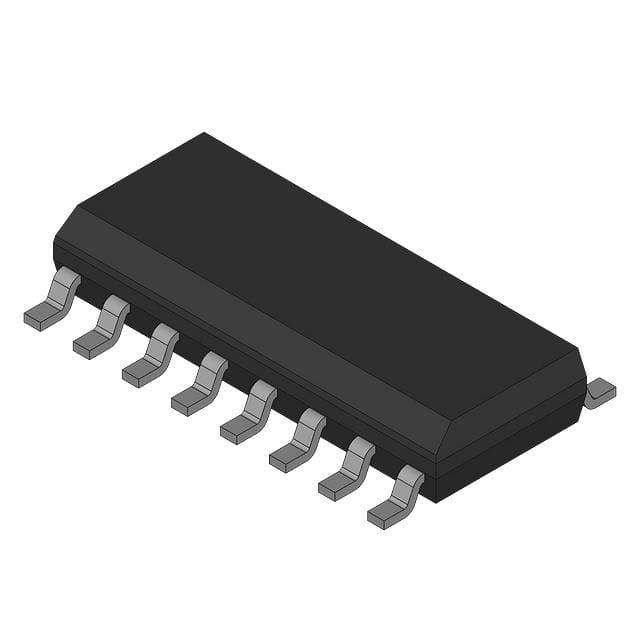

| Image |  |
 |
|
|
 |
| Part Number | 74HC174D,653 | 74HC174D-Q100J | 74HC174D-Q100J | 74HC174D,652 | 74HC174DB,118 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Series | 74HC | 74HC | 74HC | 74HC | 74HC |
| Package/Case | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SSOP (0.209", 5.30mm Width) |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Function | Master Reset | Master Reset | Master Reset | Master Reset | Master Reset |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Non-Inverted | Non-Inverted | Non-Inverted | Non-Inverted | Non-Inverted |
| Number of Elements | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 6 | 6 | 6 | 6 | 6 |
| Clock Frequency | 107 MHz | 107 MHz | 107 MHz | 107 MHz | 107 MHz |
| Max Propagation Delay @ V, Max CL | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA | 8 µA | 8 µA | 8 µA | 8 µA |
| Input Capacitance | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Grade | - | - | Automotive | - | - |
| Qualification | - | - | AEC-Q100 | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-SO | 16-SO | 16-SO | 16-SO | 16-SSOP |
