Würth Elektronik 749013011
- Part No.:
- 749013011
- Manufacturer:
- Würth Elektronik
- Category:
- Pulse Transformers
- Package:
- Datasheet:
-
749013011.pdf
- Description:
- TRANSFORMER LAN 10/100 POE SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
749013011 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Würth Elektronik
- Series:
- WE-LAN
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Transformer Type:
- LAN 10/100 Base-T, Power over Ethernet (PoE)
- Inductance:
- 350µH
- ET (Volt-Time):
- -
- Turns Ratio - Primary:Secondary:
- 1:1
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.510" L x 0.280" W (12.95mm x 7.11mm)
- Height - Seated (Max):
- 0.210" (5.33mm)
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
| Image |  |
 |

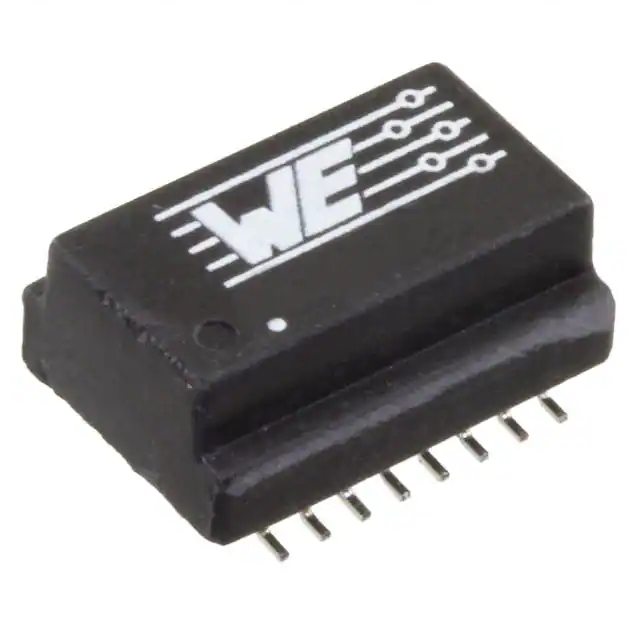

| Part Number | 749013011 | 749013011A |
| Manufacturer | Würth Elektronik | Würth Elektronik |
| Series | WE-LAN | WE-LAN |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Transformer Type | LAN 10/100 Base-T, Power over Ethernet (PoE) | LAN 10/100 Base-T, Power over Ethernet (PoE) |
| Inductance | 350µH | 350µH |
| ET (Volt-Time) | - | - |
| Turns Ratio - Primary:Secondary | 1:1 | 1:1 |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.510" L x 0.280" W (12.95mm x 7.11mm) | 0.500" L x 0.346" W (12.70mm x 8.80mm) |
| Height - Seated (Max) | 0.210" (5.33mm) | 0.250" (6.35mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C |
| Grade | - | - |
| Qualification | - | - |
