TE Connectivity AMP Connectors 7-1393644-4
- Part No.:
- 7-1393644-4
- Manufacturer:
- TE Connectivity AMP Connectors
- Category:
- DIN 41612
- Package:
- Datasheet:
-
7-1393644-4.pdf
- Description:
- CONN DIN PLUG 48POS PCB RA GOLD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
7-1393644-4 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity AMP Connectors
- Series:
- Eurocard
- Packaging:
- Bulk
- Product Status:
- Active
- Connector Type:
- Plug, Male Pins
- Number of Positions:
- 48
- Number of Positions Loaded:
- All
- Pitch:
- 0.100" (2.54mm)
- Number of Rows:
- 3
- Style:
- C/2 (1/2 C)
- Level, Class:
- 2
- Mounting Type:
- Through Hole, Right Angle
- Termination:
- Solder
- Features:
- Board Lock
- Contact Finish:
- Gold or Gold-Palladium
- Contact Finish Thickness:
- -
| Image |  |
 |
 |
 |
 |

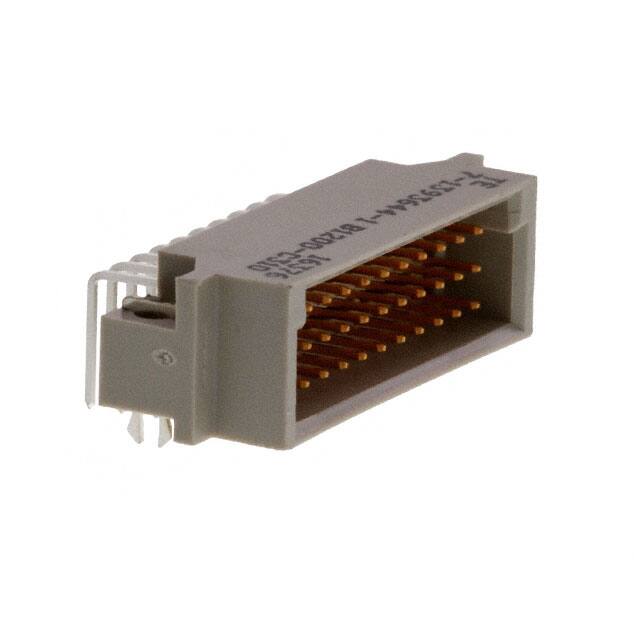

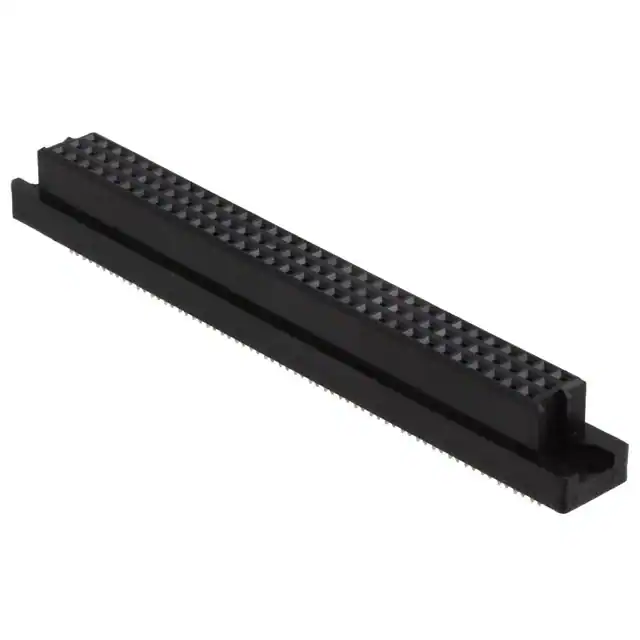

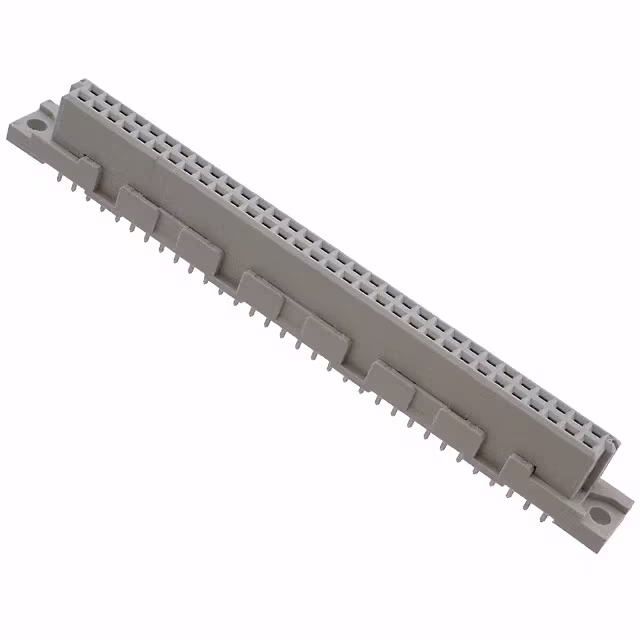

| Part Number | 7-1393644-4 | 746603-4 | 7-1393644-1 | 7-1393640-8 | 7-1393640-4 |
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | Eurocard | Eurocard | Eurocard | Eurocard | Eurocard |
| Packaging | Bulk | Tray | Tray | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 48 | 96 | 30 | 64 | 32 |
| Number of Positions Loaded | All | 64 | All | All | All |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 3 | 3 | 3 | 2 | 2 |
| Style | C/2 (1/2 C) | C | C/3 (1/3 C) | B | B |
| Level, Class | 2 | - | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | IDC | Solder | Solder | Solder |
| Features | Board Lock | - | Board Lock | - | - |
| Contact Finish | Gold or Gold-Palladium | Gold | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | 30.0µin (0.76µm) | - | - | - |
