Advanced Photonix 630-70-75-500
- Part No.:
- 630-70-75-500
- Manufacturer:
- Advanced Photonix
- Category:
- Photodiodes
- Package:
- -
- Datasheet:
-
630-70-75-500.pdf
- Description:
- SENSOR PHOTODIODE 675NM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
630-70-75-500 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advanced Photonix
- Series:
- -
- Package/Case:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Wavelength:
- 675nm
- Color - Enhanced:
- -
- Spectral Range:
- 350nm ~ 1050nm
- Diode Type:
- Avalanche
- Responsivity @ nm:
- 30 A/W @ 160nm
- Response Time:
- 15ns
- Voltage - DC Reverse (Vr) (Max):
- 2000 V
- Current - Dark (Typ):
- 280nA
- Active Area:
- 201.06mm²
- Viewing Angle:
- -
- Operating Temperature:
- -55°C ~ 40°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Chassis Mount
| Image |  |
 |
 |
 |

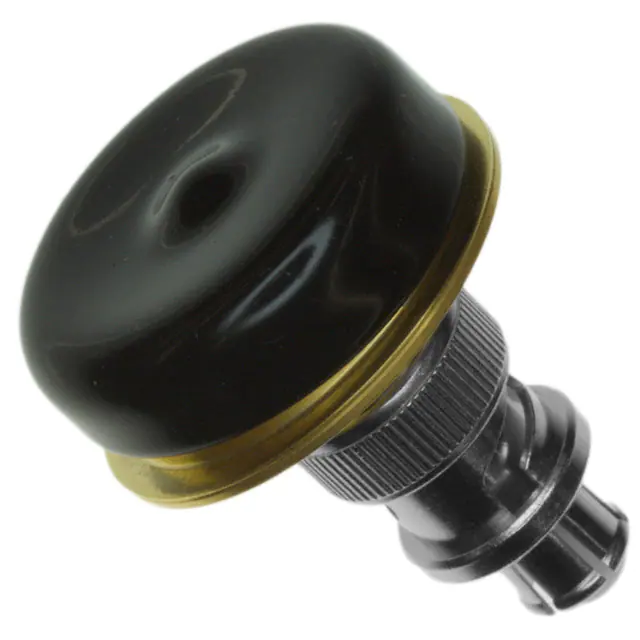

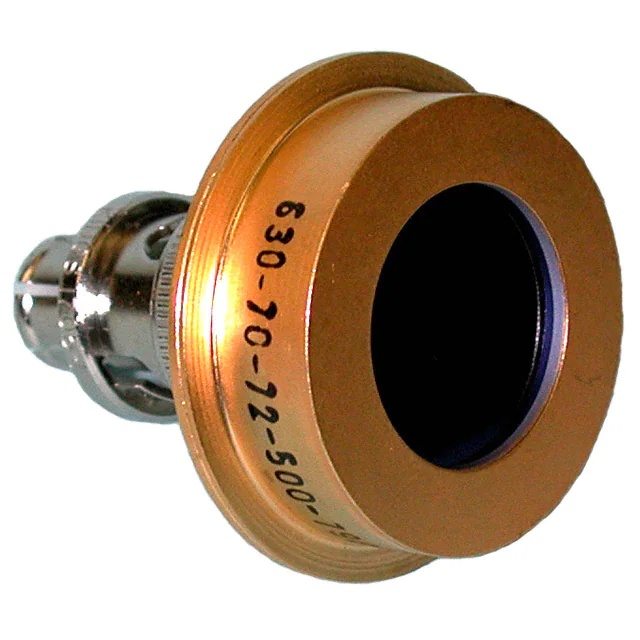

| Part Number | 630-70-72-500 | 630-70-73-500 | 630-70-74-500 | 630-70-75-500 |
| Manufacturer | Advanced Photonix | Advanced Photonix | Advanced Photonix | Advanced Photonix |
| Series | - | - | - | - |
| Package/Case | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Wavelength | 675nm | 675nm | 675nm | 675nm |
| Color - Enhanced | Red | - | Blue | - |
| Spectral Range | 300nm ~ 1000nm | 350nm ~ 1050nm | 300nm ~ 1000nm | 350nm ~ 1050nm |
| Diode Type | Avalanche | Avalanche | Avalanche | Avalanche |
| Responsivity @ nm | 100 A/W @ 750nm | 38 A/W @ 350nm | 70 A/W @ 500nm | 30 A/W @ 160nm |
| Response Time | 15ns | 15ns | 15ns | 15ns |
| Voltage - DC Reverse (Vr) (Max) | 2000 V | 2000 V | 2000 V | 2000 V |
| Current - Dark (Typ) | 280nA | 280nA | 280nA | 280nA |
| Active Area | 201.06mm² | 201.06mm² | 201.06mm² | 201.06mm² |
| Viewing Angle | - | - | - | - |
| Operating Temperature | -55°C ~ 40°C | -55°C ~ 40°C | -55°C ~ 40°C | -55°C ~ 40°C |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
