Amphenol All Sensors Corporation 5 PSI-D-4V-ASCX
- Part No.:
- 5 PSI-D-4V-ASCX
- Manufacturer:
- Amphenol All Sensors Corporation
- Category:
- Pressure Sensors, Transducers
- Package:
- 4-SIP
- Description:
- SENSOR 5PSID 0.19" 4.75V 4SIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
5 PSI-D-4V-ASCX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol All Sensors Corporation
- Series:
- ASCX
- Package/Case:
- 4-SIP
- Packaging:
- Bulk
- Product Status:
- Active
- Applications:
- Board Mount
- Pressure Type:
- Differential
- Operating Pressure:
- ±5PSI (±34.47kPa)
- Output Type:
- Wheatstone Bridge
- Output:
- 0.25 V ~ 4.75 V
- Accuracy:
- ±0.5%
- Voltage - Supply:
- 4.5V ~ 5.5V
- Port Size:
- Male - 0.19" (4.8mm) Tube, Dual
- Port Style:
- Barbless
- Features:
- Amplified Output, Temperature Compensated
- Termination Style:
- PC Pin
- Maximum Pressure:
- ±15PSI (±103.42kPa)
- Operating Temperature:
- -25°C ~ 105°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 4-SIP
| Image |  |
 |
 |
 |
 |

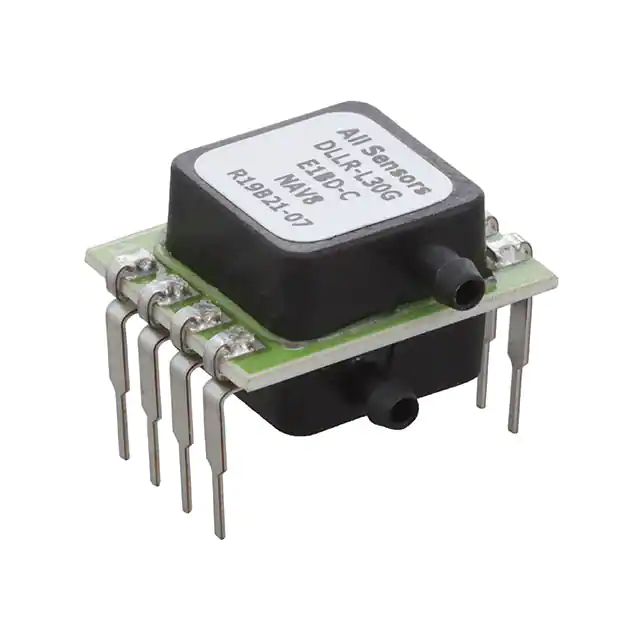

| Part Number | 5 PSI-D-4V-ASCX | 5 PSI-D-HGRADE-MV | 5 PSI-GF-HGRADE-MINI | 5 PSI-GF-CGRADE-MINI | 5 PSI-D-4V-MIL |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| Series | ASCX | AXCX | ACPC | ACPC | AXCA |
| Package/Case | 4-SIP | 6-SIP Module | 4-SIP Module | 4-SIP Module | 4-SIP Module |
| Packaging | Bulk | Strip | Bulk | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Applications | Board Mount | Board Mount | Board Mount | Board Mount | Board Mount |
| Pressure Type | Differential | Differential | Vented Gauge | Vented Gauge | Differential |
| Operating Pressure | ±5PSI (±34.47kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) | 5PSI (34.47kPa) |
| Output Type | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Analog Voltage |
| Output | 0.25 V ~ 4.75 V | 0 mV ~ 60 mV (12V) | 0 mV ~ 60 mV (12V) | 0 mV ~ 60 mV (12V) | 0.25 V ~ 4.25 V |
| Accuracy | ±0.5% | ±0.5% | ±0.5% | ±1% | ±0.5% |
| Voltage - Supply | 4.5V ~ 5.5V | 16V | 16V | 16V | 4.5V ~ 5.5V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual | Male - 0.19" (4.83mm) Tube, Dual | Male - 0.18" (4.57mm) Tube | Male - 0.18" (4.57mm) Tube | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbless | Barbless | Barbless | Barbless | Barbless |
| Features | Amplified Output, Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Maximum Pressure | ±15PSI (±103.42kPa) | 10PSI (68.95kPa) | 20PSI (137.9kPa) | 20PSI (137.9kPa) | 15PSI (103.42kPa) |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 125°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 4-SIP | - | - | - | - |
