Bourns Inc. 53RAD-R22-A25
- Part No.:
- 53RAD-R22-A25
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Description:
- POT 1M OHM 1W CERMET LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
53RAD-R22-A25 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- Pro Audio 53
- Packaging:
- Tray
- Product Status:
- Obsolete
- Resistance (Ohms):
- 1M
- Tolerance:
- ±10%
- Power (Watts):
- 1W
- Built in Switch:
- None
- Number of Turns:
- 1.0
- Features:
- Sealed
- Taper:
- Linear
- Number of Gangs:
- 1
- Adjustment Type:
- User Defined
- Temperature Coefficient:
- ±150ppm/°C
- Rotation:
- 290°
- Resistive Material:
- Cermet
- Termination Style:
- Solder Lug
- Actuator Type:
- Slotted
- Actuator Length:
- 0.866" (22.00mm)
- Actuator Diameter:
- 0.236" (6.00mm)
- Bushing Thread:
- M10 x 0.75
- Mounting Type:
- Panel Mount

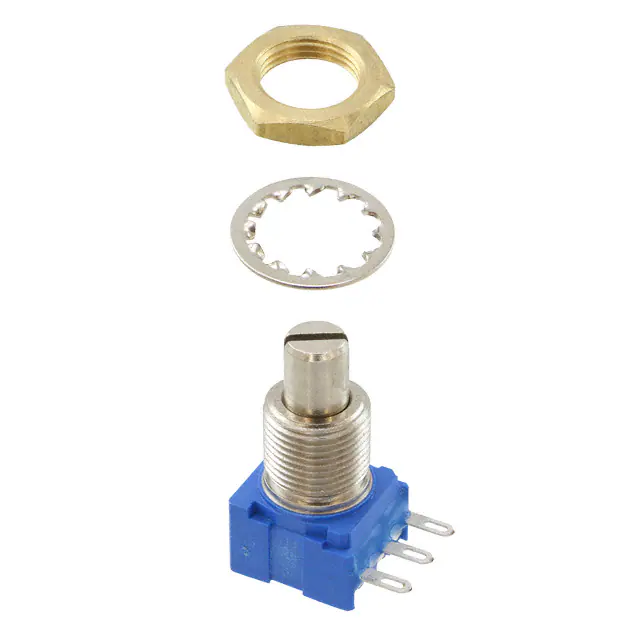

| Image |  |
 |
|
|
| Part Number | 53RAD-R16-B15L | 53RAD-R16-B10L | 53RAD-R25-D15L | 53RAD-R22-A25 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | Pro Audio 53 | Pro Audio 53 | Pro Audio 53 | Pro Audio 53 |
| Packaging | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Obsolete |
| Resistance (Ohms) | 10k | 1k | 10k | 1M |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.25W, 1/4W | 1W |
| Built in Switch | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | Sealed | Sealed | Sealed | Sealed |
| Taper | Linear | Linear | Logarithmic | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C |
| Rotation | 290° | 290° | 290° | 290° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic | Cermet |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.984" (25.00mm) | 0.866" (22.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M10 x 0.75 | M10 x 0.75 | M10 x 0.75 | M10 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
