Bourns Inc. 51CAD-E28-A13
- Part No.:
- 51CAD-E28-A13
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Description:
- POT 5K OHM 1W CERMET LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
51CAD-E28-A13 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- Pro Audio 51
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Resistance (Ohms):
- 5k
- Tolerance:
- ±10%
- Power (Watts):
- 1W
- Built in Switch:
- None
- Number of Turns:
- 1.0
- Features:
- Sealed
- Taper:
- Linear
- Number of Gangs:
- 1
- Adjustment Type:
- Side Adjustment
- Temperature Coefficient:
- ±150ppm/°C
- Rotation:
- 290°
- Resistive Material:
- Cermet
- Termination Style:
- PC Pins
- Actuator Type:
- Slotted
- Actuator Length:
- 0.875" (22.23mm)
- Actuator Diameter:
- 0.125" (3.18mm)
- Bushing Thread:
- 1/4-32
- Mounting Type:
- Panel Mount
| Image |  |
 |
 |
 |
 |

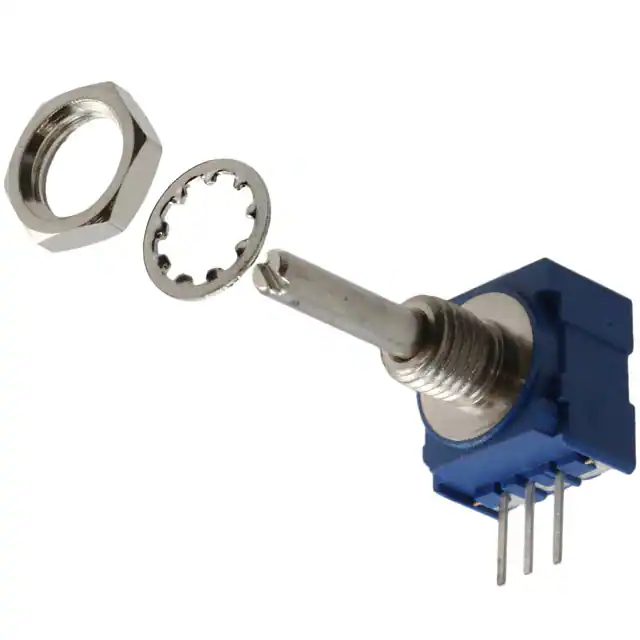

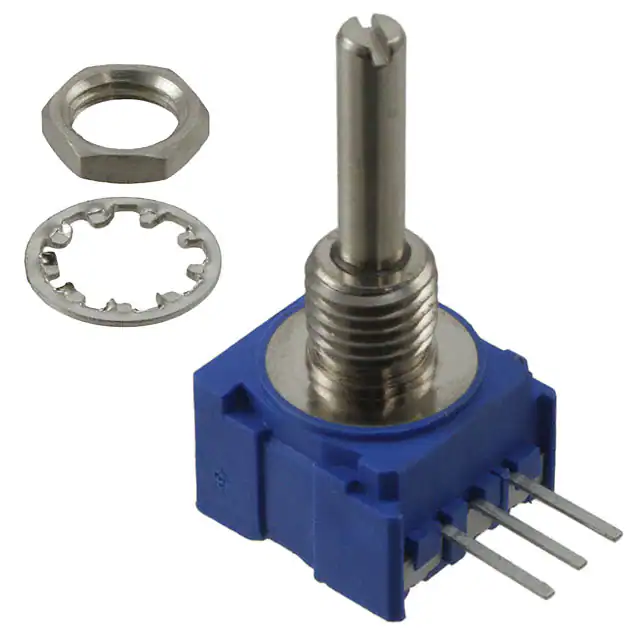

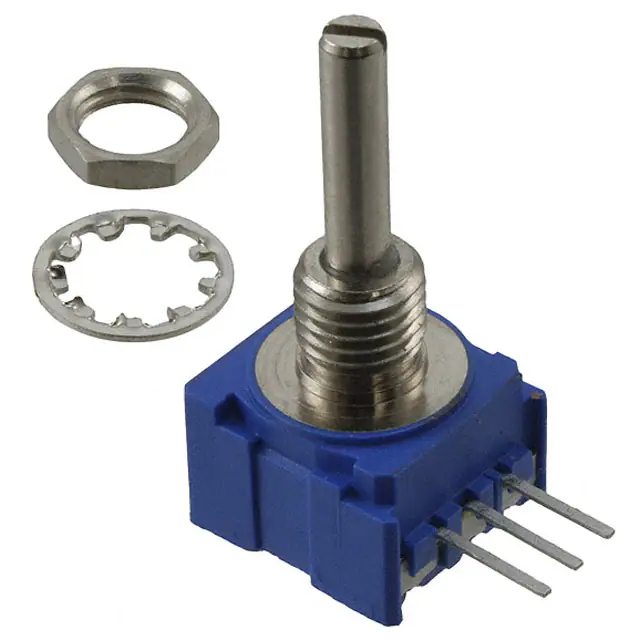

| Part Number | 51CAD-E24-A20L | 51CAD-E24-A15L | 51CAD-E24-B18L | 51CAD-E24-B13L | 51CAD-E28-A10L |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | Pro Audio 51 | Pro Audio 51 | Pro Audio 51 | Pro Audio 51 | Pro Audio 51 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 100k | 10k | 50k | 5k | 1k |
| Tolerance | ±10% | ±10% | ±20% | ±20% | ±10% |
| Power (Watts) | 1W | 1W | 0.5W, 1/2W | 0.5W, 1/2W | 1W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | Sealed | Sealed | Sealed | Sealed | Sealed |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C |
| Rotation | 290° | 290° | 290° | 290° | 290° |
| Resistive Material | Cermet | Cermet | Conductive Plastic | Conductive Plastic | Cermet |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.875" (22.23mm) |
| Actuator Diameter | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Bushing Thread | 1/4-32 | 1/4-32 | 1/4-32 | 1/4-32 | 1/4-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
