TE Connectivity Measurement Specialties 4525DO-SS3AS015AP
- Part No.:
- 4525DO-SS3AS015AP
- Manufacturer:
- TE Connectivity Measurement Specialties
- Category:
- Pressure Sensors, Transducers
- Package:
- 8-DIP Module
- Datasheet:
-
4525DO-SS3AS015AP.pdf
- Description:
- SENSOR 15PSIA 0.14" 14BIT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
4525DO-SS3AS015AP Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Measurement Specialties
- Series:
- MS4525DO
- Package/Case:
- 8-DIP Module
- Packaging:
- Tray
- Product Status:
- Active
- Applications:
- Board Mount
- Pressure Type:
- Absolute
- Operating Pressure:
- 15PSI (103.42kPa)
- Output Type:
- SPI
- Output:
- 14 b
- Accuracy:
- ±0.25%
- Voltage - Supply:
- 3.3V
- Port Size:
- Male - 0.14" (3.56mm) Tube
- Port Style:
- Barbed
- Features:
- Temperature Compensated
- Termination Style:
- PC Pin
- Maximum Pressure:
- 90PSI (620.53kPa)
- Operating Temperature:
- -25°C ~ 105°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
| Image |  |
 |
 |
 |
 |

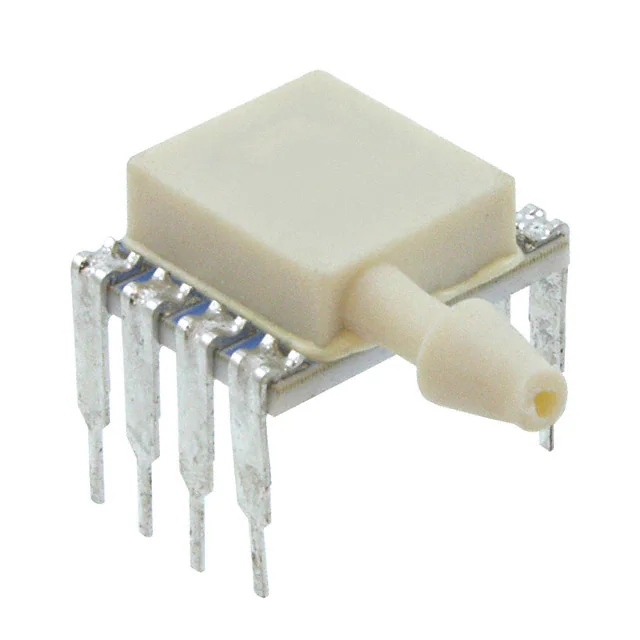

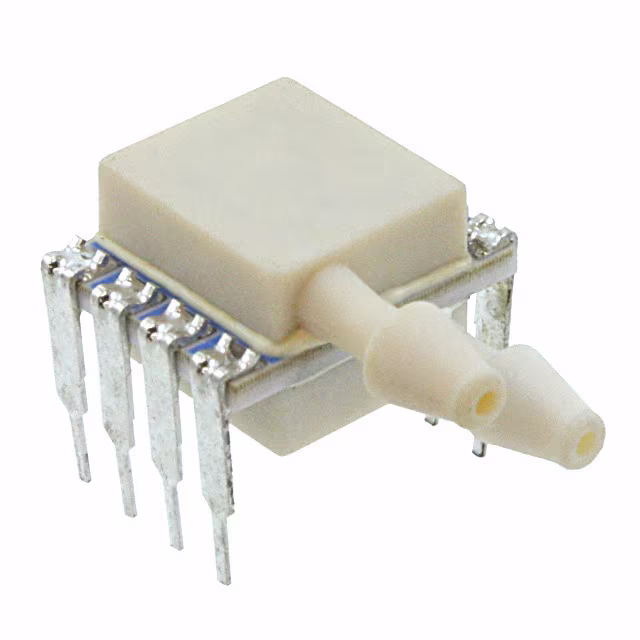

| Part Number | 4525DO-DS5AI001DP | 4525DO-SS3AS015AP | 4525DO-SS5AI100GP | 4525DO-DS5AI015DP | 4525DO-TP5AS005GPF |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| Series | MS4525DO | MS4525DO | MS4525DO | MS4525DO | * |
| Package/Case | 8-DIP Module | 8-DIP Module | 8-DIP Module | 8-DIP Module | - |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Applications | Board Mount | Board Mount | Board Mount | - | - |
| Pressure Type | Differential | Absolute | Vented Gauge | Differential | - |
| Operating Pressure | 1PSI (6.89kPa) | 15PSI (103.42kPa) | 100PSI (689.48kPa) | 15PSI (103.42kPa) | - |
| Output Type | I2C | SPI | I2C | I2C | - |
| Output | 14 b | 14 b | 14 b | 14 b | - |
| Accuracy | ±0.25% | ±0.25% | ±0.25% | ±0.25% | - |
| Voltage - Supply | 5V | 3.3V | 5V | 5V | - |
| Port Size | Male - 0.14" (3.56mm) Tube, Dual | Male - 0.14" (3.56mm) Tube | Male - 0.14" (3.56mm) Tube | Male - 0.14" (3.56mm) Tube, Dual | - |
| Port Style | Barbed | Barbed | Barbed | Barbed | - |
| Features | Temperature Compensated | Temperature Compensated | Temperature Compensated | Temperature Compensated | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | - |
| Maximum Pressure | 10PSI (68.95kPa) | 90PSI (620.53kPa) | 300PSI (2068.43kPa) | 45PSI (310.26kPa) | - |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | - |
| Supplier Device Package | - | - | - | - | - |
