Bourns Inc. 3547S-1AA-103B
- Part No.:
- 3547S-1AA-103B
- Manufacturer:
- Bourns Inc.
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Description:
- POT 10K OHM 1W WIREWOUND LINEAR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3547S-1AA-103B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- 3547
- Packaging:
- Tray
- Product Status:
- Active
- Resistance (Ohms):
- 10k
- Tolerance:
- ±3%
- Power (Watts):
- 1W
- Built in Switch:
- None
- Number of Turns:
- 3.0
- Features:
- -
- Taper:
- Linear
- Number of Gangs:
- 1
- Adjustment Type:
- User Defined
- Temperature Coefficient:
- ±50ppm/°C
- Rotation:
- 1080°
- Resistive Material:
- Wirewound
- Termination Style:
- Solder Lug
- Actuator Type:
- Slotted
- Actuator Length:
- 0.813" (20.64mm)
- Actuator Diameter:
- 0.250" (6.35mm)
- Bushing Thread:
- 3/8-32
- Mounting Type:
- Panel Mount

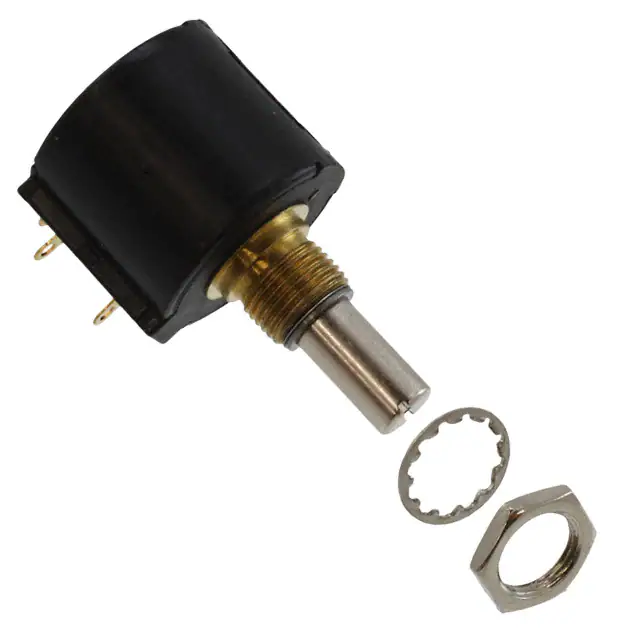

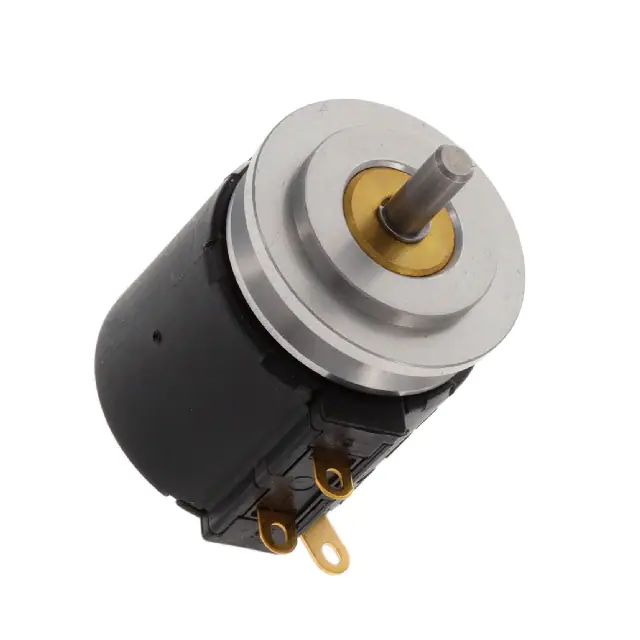

| Image |  |
|
|
 |
 |
| Part Number | 3547S-1AA-502A | 3547S-1AA-103A | 3547S-1AA-202A | 3547S-1AA-102A | 3547S-1AE-103A |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | 3547 | 3547 | 3547 | 3547 | 3547 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 5k | 10k | 2k | 1k | 10k |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Features | - | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | User Defined | User Defined | User Defined | User Defined | User Defined |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Rotation | 1080° | 1080° | 1080° | 1080° | 1080° |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Actuator Type | Slotted | Slotted | Slotted | Slotted | Round |
| Actuator Length | 0.813" (20.64mm) | 0.813" (20.64mm) | 0.813" (20.64mm) | 0.813" (20.64mm) | 0.375" (9.53mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.125" (3.18mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Servo Mount |
