Bourns Inc. 3314R-1-103E
- Part No.:
- 3314R-1-103E
- Manufacturer:
- Bourns Inc.
- Category:
- Trimmer Potentiometers
- Package:
- Datasheet:
-
3314R-1-103E.pdf
- Description:
- TRIMMER 10K OHM 0.25W GW BOT ADJ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
3314R-1-103E Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- Trimpot® 3314 - Sealed
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Resistance:
- 10 kOhms
- Power (Watts):
- 0.25W, 1/4W
- Tolerance:
- ±20%
- Temperature Coefficient:
- ±100ppm/°C
- Number of Turns:
- 1.0
- Adjustment Type:
- Bottom Adjustment
- Resistive Material:
- Cermet
- Mounting Type:
- Surface Mount
- Termination Style:
- Gull Wing
- Size / Dimension:
- Square - 0.177" x 0.177" Face (4.50mm x 4.50mm)

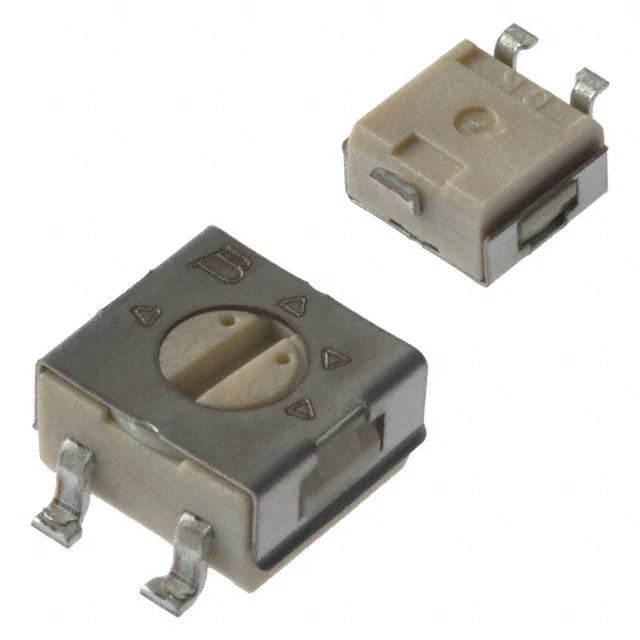

| Image |  |
|
|
|
 |
| Part Number | 3314R-1-103E | 3314R-1-104E | 3314R-1-501E | 3314R-1-502E | 3314R-GM5-503E |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Series | Trimpot® 3314 - Sealed | Trimpot® 3314 - Sealed | Trimpot® 3314 - Sealed | Trimpot® 3314 - Sealed | Trimpot® 3314 - Sealed |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 10 kOhms | 100 kOhms | 500 Ohms | 5 kOhms | 50 kOhms |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Adjustment Type | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment | Bottom Adjustment |
| Resistive Material | Cermet | Cermet | Cermet | Cermet | Cermet |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination Style | Gull Wing | Gull Wing | Gull Wing | Gull Wing | Gull Wing |
| Size / Dimension | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) | Square - 0.177" x 0.177" Face (4.50mm x 4.50mm) |
