Laird-Signal Integrity Products 28C0236-0EW-10
- Part No.:
- 28C0236-0EW-10
- Manufacturer:
- Laird-Signal Integrity Products
- Category:
- Ferrite Beads and Chips
- Package:
- Radial
- Datasheet:
-
28C0236-0EW-10.pdf
- Description:
- FERRITE BEAD 998 OHM RADIAL 1LN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
28C0236-0EW-10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Laird-Signal Integrity Products
- Series:
- 28
- Package/Case:
- Radial
- Packaging:
- Bulk
- Product Status:
- Active
- Filter Type:
- Power Line
- Number of Lines:
- 1
- Impedance @ Frequency:
- 998 Ohms @ 100 MHz
- Current Rating (Max):
- 5A
- DC Resistance (DCR) (Max):
- 10mOhm
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Mounting Type:
- Through Hole
- Height (Max):
- 0.575" (14.61mm)
- Size / Dimension:
- 0.236" Dia x 0.394" L (6.00mm x 10.00mm)
- Features:
- -
| Image |  |
 |
 |
 |
 |

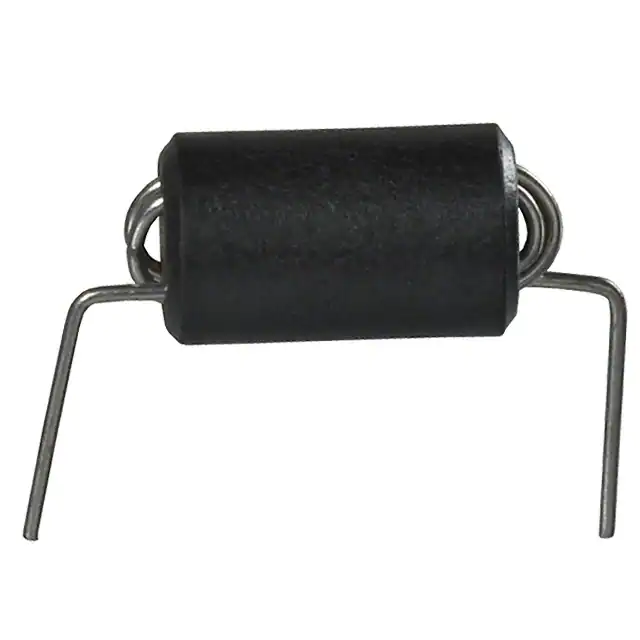

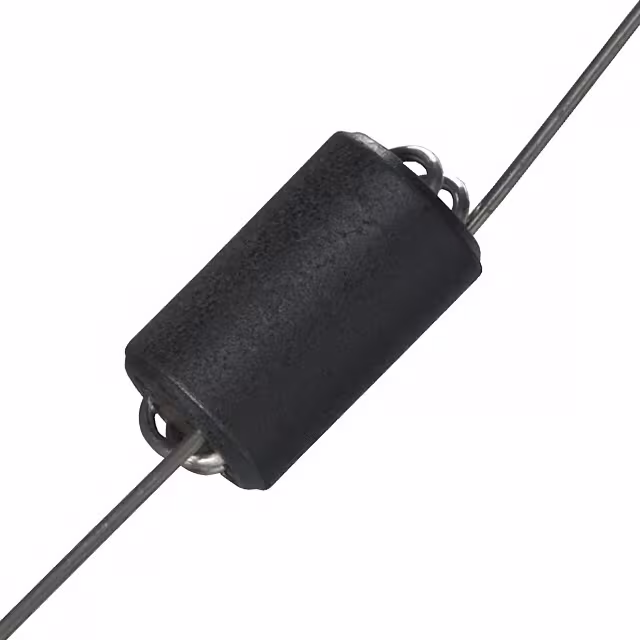

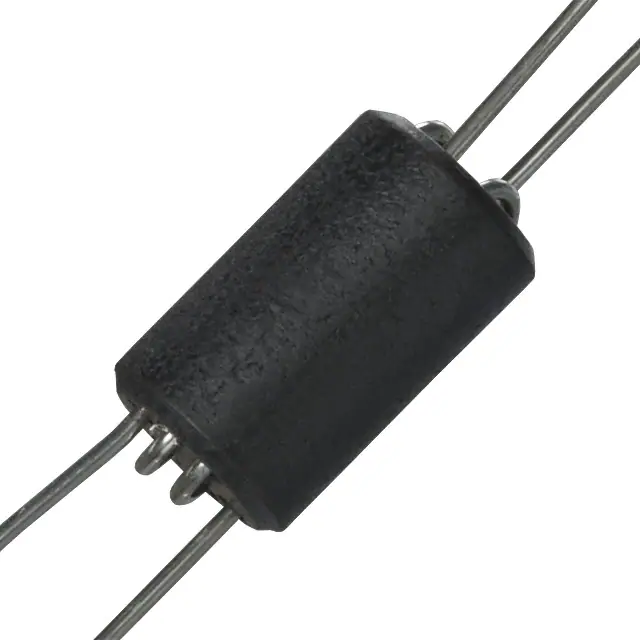

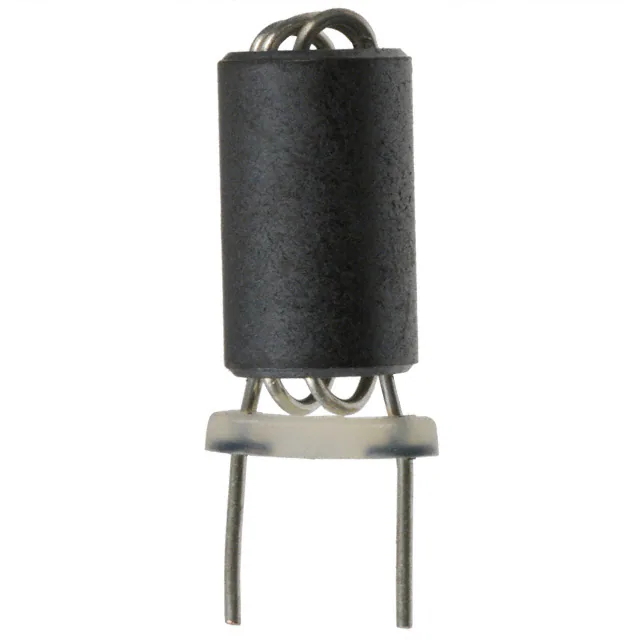

| Part Number | 28C0236-0EW-10 | 28C0236-0JW-10 | 28C0236-0BS-10 | 28C0236-0BW-10 | 28C0236-0DW-10 |
| Manufacturer | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products | Laird-Signal Integrity Products |
| Series | 28 | 28C0236 | 28C0236 | 28C0236 | 28C0236 |
| Package/Case | Radial | Radial | Axial, Radial Bend | Axial | Axial - 4 Leads |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 998 Ohms @ 100 MHz | 998 Ohms @ 100 MHz | 835 Ohms @ 100 MHz | 835 Ohms @ 100 MHz | 460 Ohms @ 100 MHz |
| Current Rating (Max) | 5A | 5A | 5A | 5A | 5A |
| DC Resistance (DCR) (Max) | 10mOhm | 10mOhm | 10mOhm | 10mOhm | 10mOhm |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Height (Max) | 0.575" (14.61mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.236" Dia x 0.394" L (6.00mm x 10.00mm) | 0.236" Dia x 0.825" L (6.00mm x 20.96mm) | 0.236" Dia x 0.590" L (6.00mm x 15.00mm) | 0.236" Dia x 3.404" L (6.00mm x 84.46mm) | 0.236" Dia x 3.404" L (6.00mm x 84.46mm) |
| Features | - | - | - | - | - |
