Tusonix a Subsidiary of CTS Electronic Components 2499-003-X5S0-152MLF
- Part No.:
- 2499-003-X5S0-152MLF
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Category:
- Feed Through Capacitors
- Package:
- Axial, Bushing
- Datasheet:
-
2499-003-X5S0-152MLF.pdf
- Description:
- CAP FEEDTHRU 1500PF 500V AXIAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
2499-003-X5S0-152MLF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tusonix a Subsidiary of CTS Electronic Components
- Series:
- 2499
- Package/Case:
- Axial, Bushing
- Packaging:
- Bulk
- Product Status:
- Active
- Capacitance:
- 1500 pF
- Tolerance:
- ±20%
- Voltage - Rated:
- 500V
- Current:
- 20 A
- DC Resistance (DCR) (Max):
- -
- Operating Temperature:
- -55°C ~ 85°C
- Insertion Loss:
- -
- Temperature Coefficient:
- X5S
- Ratings:
- -
- Mounting Type:
- -
- Size / Dimension:
- 0.250" Dia x 0.468" L (6.35mm x 11.89mm)
- Height (Max):
- -
- Thread Size:
- 12-28

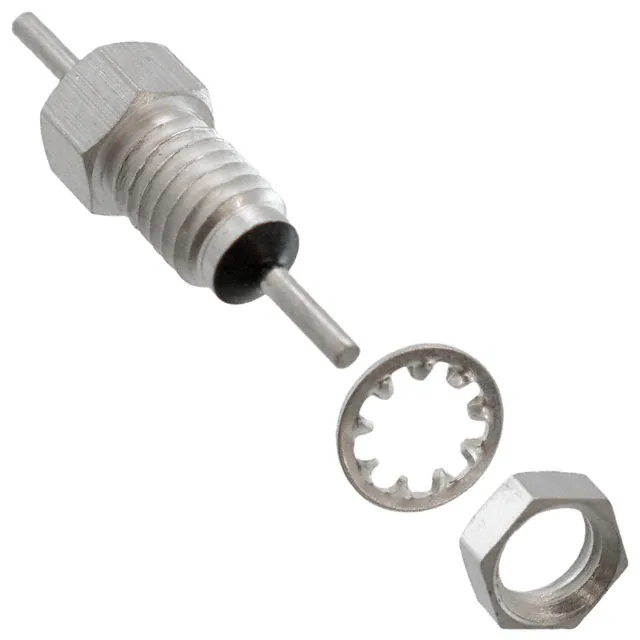

| Image |  |
 |
 |
|
 |
| Part Number | 2499-003-X5S0-102MLF | 2499-003-X5S0-152MLF | 2499-003-X5U0-102PLF | 2499-003-X7W0-103ZLF | 2499-540-X7W0-502ZLF |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2499 | 2499 | 2499 | 2499 | 2499 |
| Package/Case | Axial, Bushing | Axial, Bushing | Axial, Bushing | Axial, Bushing | Axial, Bushing |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1500 pF | 1000 pF | 10000 pF | 5000 pF |
| Tolerance | ±20% | ±20% | 0%, +100% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 500V | 500V | 500V | 250V | 500V |
| Current | 20 A | 20 A | 20 A | 20 A | 10 A |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Insertion Loss | - | - | 20dB @ 100MHz | - | - |
| Temperature Coefficient | X5S | X5S | X5U | X7W | X7W |
| Ratings | - | - | - | - | - |
| Mounting Type | - | - | - | - | - |
| Size / Dimension | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | 0.236" Dia x 0.610" L (6.00mm x 15.50mm) |
| Height (Max) | - | - | - | - | - |
| Thread Size | 12-28 | 12-28 | 12-28 | 12-28 | M5x0.8 |
