Amphenol All Sensors Corporation 1 INCH-D-MV
- Part No.:
- 1 INCH-D-MV
- Manufacturer:
- Amphenol All Sensors Corporation
- Category:
- Pressure Sensors, Transducers
- Package:
- 6-SIP Module
- Description:
- SENSOR 0.04PSID 0.19" .01V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
1 INCH-D-MV Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol All Sensors Corporation
- Series:
- ADCX
- Package/Case:
- 6-SIP Module
- Packaging:
- Tube
- Product Status:
- Active
- Applications:
- Board Mount
- Pressure Type:
- Differential
- Operating Pressure:
- 0.04PSI (0.25kPa)
- Output Type:
- Wheatstone Bridge
- Output:
- 0 mV ~ 10 mV (12V)
- Accuracy:
- ±0.25%
- Voltage - Supply:
- 16V
- Port Size:
- Male - 0.19" (4.83mm) Tube, Dual
- Port Style:
- Barbless
- Features:
- Temperature Compensated
- Termination Style:
- PC Pin
- Maximum Pressure:
- 3.61PSI (24.92kPa)
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
| Image |  |
 |
|
 |
 |

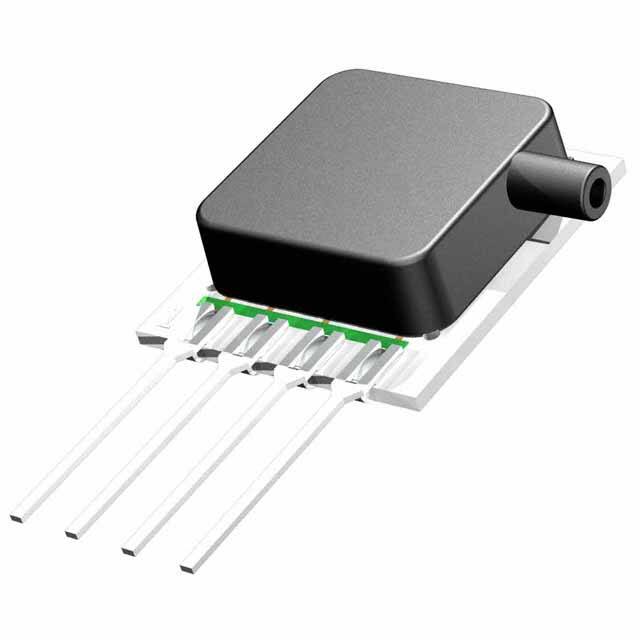

| Part Number | 1 INCH-D-MV | 1 INCH-D-4V | 1 INCH-G-4V | 1 INCH-G-P4V-MINI | 1 INCH-G-BASIC |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| Series | ADCX | ADCA | ADCA | MAMP | ADUX |
| Package/Case | 6-SIP Module | 4-SIP Module | 4-SIP Module | 4-SIP Module | 4-SIP Module |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| Applications | Board Mount | Board Mount | Board Mount | Board Mount | Board Mount |
| Pressure Type | Differential | Differential | Vented Gauge | Vented Gauge | Vented Gauge |
| Operating Pressure | 0.04PSI (0.25kPa) | ±0.04PSI (±0.25kPa) | 0.04PSI (0.25kPa) | 0.04PSI (0.25kPa) | 0.04PSI (0.25kPa) |
| Output Type | Wheatstone Bridge | Analog Voltage | Analog Voltage | Analog Voltage | Wheatstone Bridge |
| Output | 0 mV ~ 10 mV (12V) | 0.25 V ~ 4.25 V | 0.25 V ~ 4.25 V | 0.25 V ~ 4.25 V | 0 mV ~ 7 mV (4.5V) |
| Accuracy | ±0.25% | ±0.25% | ±0.25% | ±0.25% | ±0.5% |
| Voltage - Supply | 16V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 6V |
| Port Size | Male - 0.19" (4.83mm) Tube, Dual | Male - 0.19" (4.8mm) Tube, Dual | Male - 0.19" (4.8mm) Tube, Dual | Male - 0.08" (2.03mm) Tube, Dual | Male - 0.08" (2.14mm) Tube, Dual |
| Port Style | Barbless | Barbless | Barbless | Barbless | Barbless |
| Features | Temperature Compensated | Amplified Output, Temperature Compensated | Amplified Output, Temperature Compensated | Amplified Output, Temperature Compensated | Temperature Compensated |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Maximum Pressure | 3.61PSI (24.92kPa) | ±3.61PSI (±24.92kPa) | 3.61PSI (24.92kPa) | 7.23PSI (49.83kPa) | 0.04PSI (0.25kPa) |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 125°C | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
