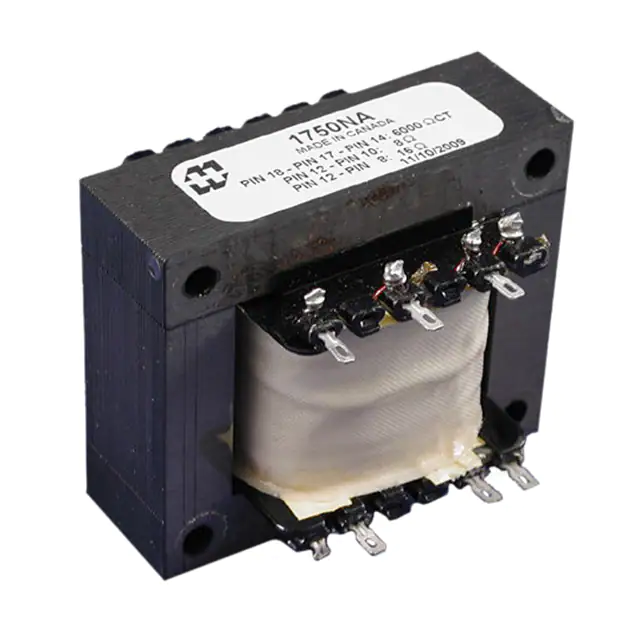

Hammond Manufacturing 1750N

Product attributes

Attribute value

Manufacturer:

Hammond Manufacturing

Series:

1750

Packaging:

Box

Product Status:

Active

Turns Ratio - Primary:Secondary:

14.30:1

Impedance - Primary (Ohms):

3.2kCT

Impedance - Secondary (Ohms):

4, 8, 16

DC Resistance (DCR) - Primary:

41.74Ohm, 3.14Ohm

DC Resistance (DCR) - Secondary:

170mOhm, 240mOhm, 360mOhm

Transformer Type:

Push-Pull Audiophile, Ultra-Linear - Tube Output

Frequency Range:

70Hz ~ 15kHz

Frequency Response:

±1dB

Voltage - Isolation:

-

Insertion Loss:

-

Return Loss:

-

Power Level:

50W

Operating Temperature:

-

Approval Agency:

-

Mounting Type:

Chassis Mount

Size / Dimension:

3.125" L x 3.350" W (79.38mm x 85.09mm)

Height - Seated (Max):

3.800" (96.52mm)

Termination Style:

Wire Leads
