Amphenol All Sensors Corporation 15 PSI-A-4V-ASCX
- Part No.:
- 15 PSI-A-4V-ASCX
- Manufacturer:
- Amphenol All Sensors Corporation
- Category:
- Pressure Sensors, Transducers
- Package:
- 4-SIP
- Description:
- SENSOR 15PSIA 0.19" 4.75V 4SIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
15 PSI-A-4V-ASCX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol All Sensors Corporation
- Series:
- ASCX
- Package/Case:
- 4-SIP
- Packaging:
- Bulk
- Product Status:
- Active
- Applications:
- Board Mount
- Pressure Type:
- Absolute
- Operating Pressure:
- 15PSI (103.42kPa)
- Output Type:
- Wheatstone Bridge
- Output:
- 0.25 V ~ 4.75 V
- Accuracy:
- ±0.5%
- Voltage - Supply:
- 4.5V ~ 5.5V
- Port Size:
- Male - 0.19" (4.8mm) Tube
- Port Style:
- Barbless
- Features:
- Amplified Output, Temperature Compensated
- Termination Style:
- PC Pin
- Maximum Pressure:
- 45PSI (310.26kPa)
- Operating Temperature:
- -25°C ~ 105°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- 4-SIP
| Image |  |
 |
 |
 |
 |

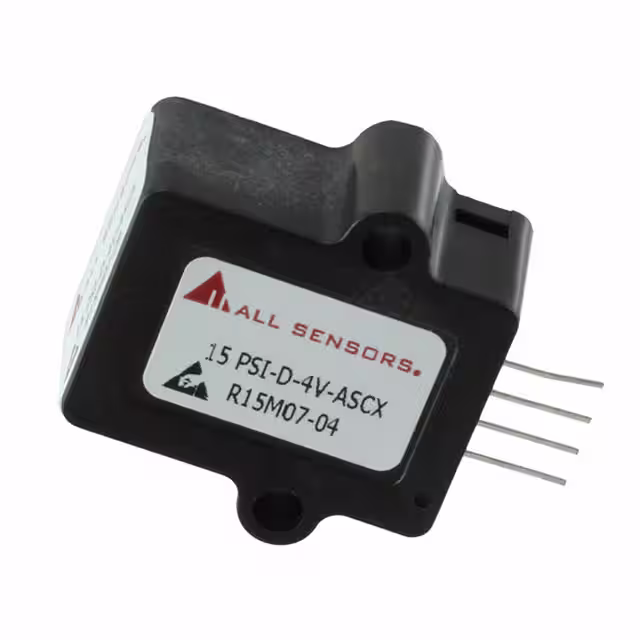

| Part Number | 15 PSI-A-4V-ASCX | 15 PSI-A-HGRADE-MINI | 15 PSI-D-HGRADE-MV | 15 PSI-D-4V-ASCX | 15 PSI-D-CGRADE-MINI |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| Series | ASCX | ACPC | AXCX | ASCX | ACPC |
| Package/Case | 4-SIP | 4-SIP Module | 6-SIP Module | 4-SIP | 4-SIP Module |
| Packaging | Bulk | Tube | Tube | Bulk | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Applications | Board Mount | Board Mount | Board Mount | Board Mount | Board Mount |
| Pressure Type | Absolute | Absolute | Differential | Differential | Differential |
| Operating Pressure | 15PSI (103.42kPa) | 15PSI (103.42kPa) | 15PSI (103.42kPa) | ±15PSI (±103.42kPa) | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge | Wheatstone Bridge |
| Output | 0.25 V ~ 4.75 V | 0 mV ~ 90 mV (12V) | 0 mV ~ 90 mV (12V) | 0.25 V ~ 4.75 V | 0 mV ~ 90 mV (12V) |
| Accuracy | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±1% |
| Voltage - Supply | 4.5V ~ 5.5V | 16V | 16V | 4.5V ~ 5.5V | 16V |
| Port Size | Male - 0.19" (4.8mm) Tube | - | Male - 0.19" (4.83mm) Tube, Dual | Male - 0.19" (4.8mm) Tube, Dual | Male - 0.18" (4.57mm) Tube, Dual |
| Port Style | Barbless | No Port | Barbless | Barbless | Barbless |
| Features | Amplified Output, Temperature Compensated | Temperature Compensated | Temperature Compensated | Amplified Output, Temperature Compensated | Temperature Compensated |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) | 60PSI (413.69kPa) | 60PSI (413.69kPa) | ±45PSI (±310.26kPa) | 60PSI (413.69kPa) |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 105°C | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 4-SIP | - | - | 4-SIP | - |
