Sumida America Components Inc. 13324-T087
- Part No.:
- 13324-T087
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Switching Converter, SMPS Transformers
- Package:
- Datasheet:
-
13324-T087.pdf
- Description:
- XFMR 40UH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
13324-T087 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- -
- Applications:
- -
- Intended Chipset:
- -
- Chipset Manufacturer:
- -
- Voltage - Primary:
- 4 ~ 18V
- Voltage - Auxiliary:
- -
- Voltage - Isolation:
- 1500Vrms
- Inductance @ Frequency:
- 40µH @ 100kHz
- Frequency:
- -
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.591" L x 0.531" W (15.00mm x 13.50mm)
- Height - Seated (Max):
- 0.492" (12.50mm)
- Footprint:
- 0.709" L x 0.531" W (18.00mm x 13.50mm)
- Style:
- -

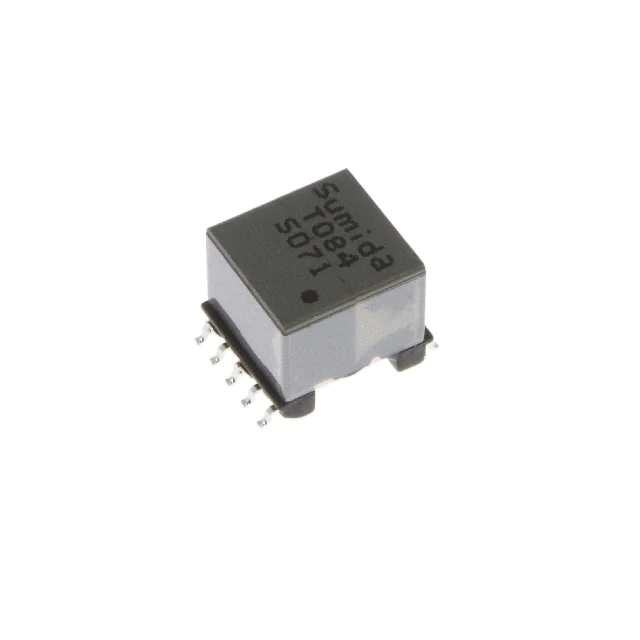

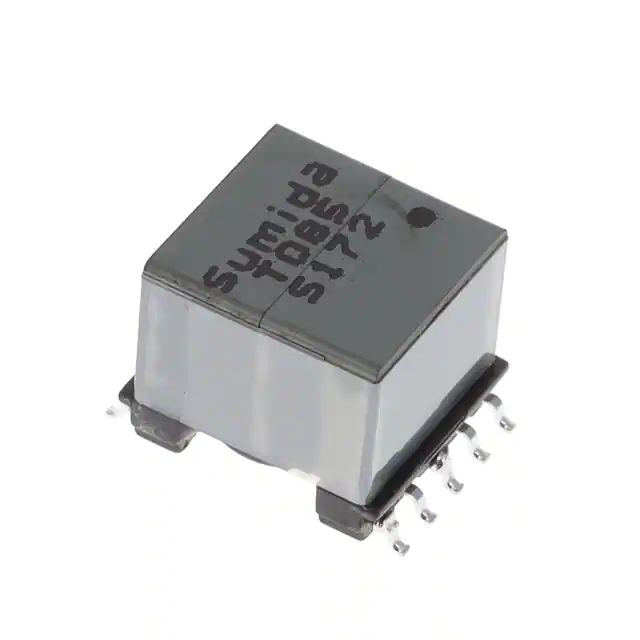

| Image |  |
|
 |
 |
 |
| Part Number | 13324-T086 | 13324-T087 | 13324-T083 | 13324-T085 | 13324-T084 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | - | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - |
| Applications | - | - | - | - | - |
| Intended Chipset | - | - | - | - | - |
| Chipset Manufacturer | - | - | - | - | - |
| Voltage - Primary | 4 ~ 36V | 4 ~ 18V | 36 ~ 75V | 36 ~ 75V | 36 ~ 75V |
| Voltage - Auxiliary | - | - | - | - | - |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms |
| Inductance @ Frequency | 40µH @ 100kHz | 40µH @ 100kHz | 40µH @ 100kHz | 40µH @ 100kHz | 40µH @ 100kHz |
| Frequency | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Size / Dimension | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.591" L x 0.531" W (15.00mm x 13.50mm) | 0.591" L x 0.531" W (15.00mm x 13.50mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Footprint | 0.709" L x 0.531" W (18.00mm x 13.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) | 0.709" L x 0.531" W (18.00mm x 13.50mm) |
| Style | - | - | - | - | - |
