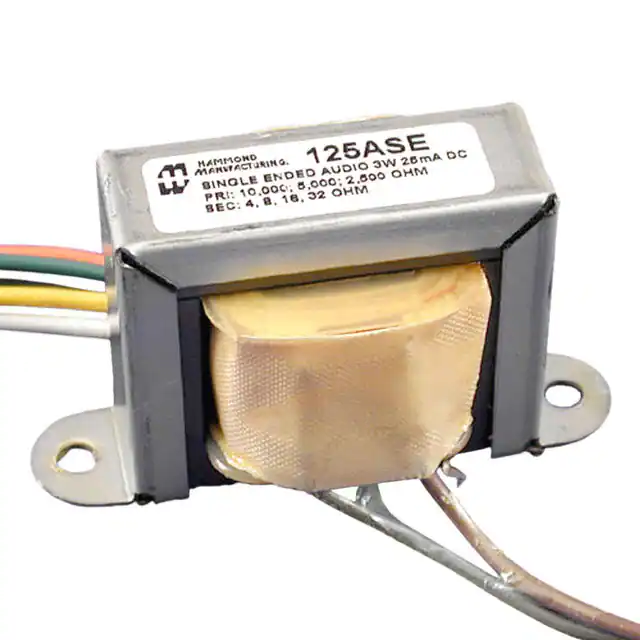

Hammond Manufacturing 125A

Product attributes

Attribute value

Manufacturer:

Hammond Manufacturing

Series:

125

Packaging:

Bulk

Product Status:

Active

Turns Ratio - Primary:Secondary:

-

Impedance - Primary (Ohms):

1.2k ~ 25k

Impedance - Secondary (Ohms):

1.5 ~ 15

DC Resistance (DCR) - Primary:

-

DC Resistance (DCR) - Secondary:

-

Transformer Type:

General Purpose

Frequency Range:

150Hz ~ 15kHz

Frequency Response:

±1dB

Voltage - Isolation:

-

Insertion Loss:

-

Return Loss:

-

Power Level:

3W

Operating Temperature:

-

Approval Agency:

-

Mounting Type:

Chassis Mount

Size / Dimension:

2.060" L x 1.250" W (52.32mm x 31.75mm)

Height - Seated (Max):

1.190" (30.23mm)

Termination Style:

Wire Leads
