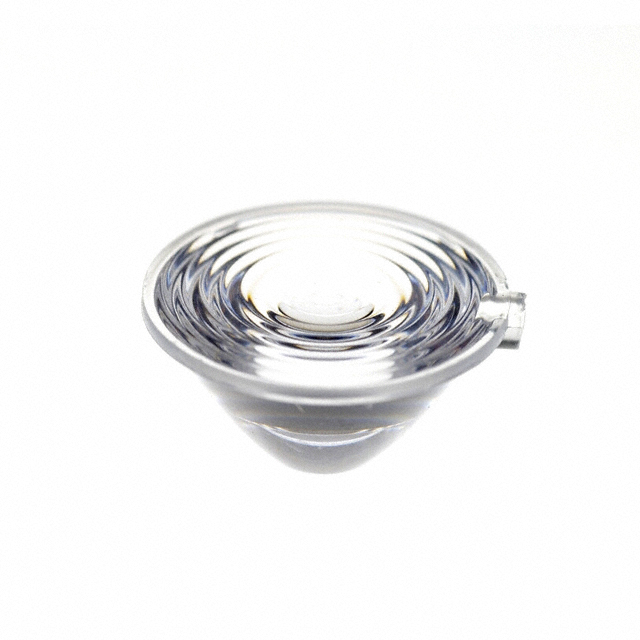

Carclo Technical Plastics 10003/15
- Part No.:
- 10003/15
- Manufacturer:
- Carclo Technical Plastics
- Category:
- Lenses
- Package:
- Datasheet:
-
10003/15.pdf
10003/15.pdf- Description:
- LENS CLR 15-33DEG MEDIUM SNAP-IN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
10003/15 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Carclo Technical Plastics
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Type:
- Lens Only, Holder Required
- Color:
- Clear
- Number of LEDs:
- 1
- Lens Style:
- Round with Ripple Top
- Lens Size:
- 20mm Dia
- Lens Transparency:
- Diffused
- Optical Pattern:
- Medium
- Viewing Angle:
- 15° ~ 33°
- For Use With/Related Manufacturer:
- Avago, Cree, Everlight, Led Engin, Lumileds, Luminus, Nichia, Osram, Samsung, Seoul, Stanley, Toshiba
- Material:
- -
- Mounting Type:
- Snap-In
| Image |  |
 |
 |
 |

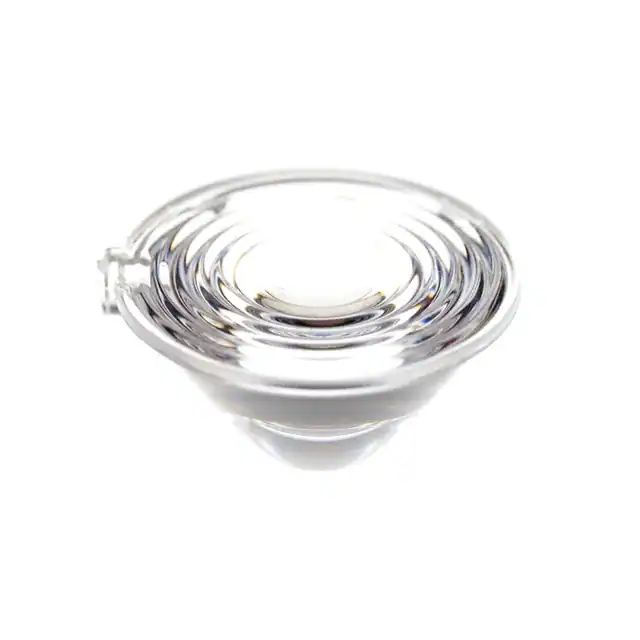

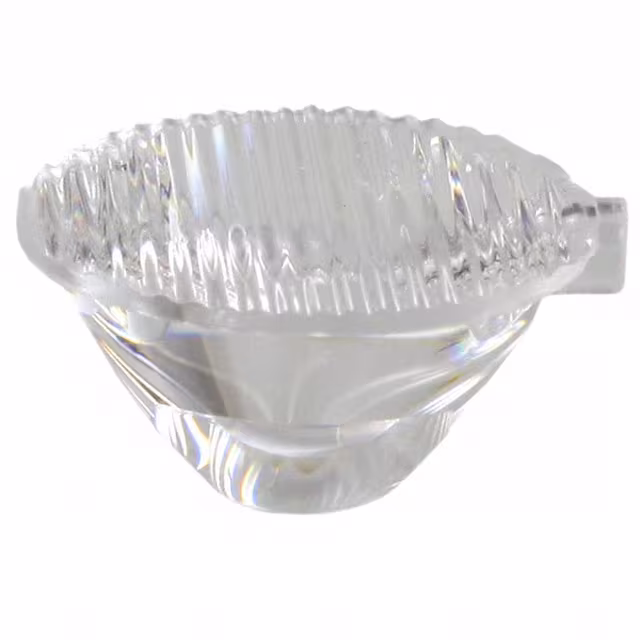

| Part Number | 10003/15 | 10003 | 10003/L25 | 10003/25 |
| Manufacturer | Carclo Technical Plastics | Carclo Technical Plastics | Carclo Technical Plastics | Carclo Technical Plastics |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active |
| Type | Lens Only, Holder Required | Lens Only, Holder Required | Lens Only, Holder Required | Lens Only, Holder Required |
| Color | Clear | Clear | Clear | Clear |
| Number of LEDs | 1 | 1 | 1 | 1 |
| Lens Style | Round with Ripple Top | Round with Flat Top | Round with Ripple Top | Round with Ripple Top |
| Lens Size | 20mm Dia | 20mm Dia | 20mm Dia | 20mm Dia |
| Lens Transparency | Diffused | Clear | Diffused | Diffused |
| Optical Pattern | Medium | Spot | Elliptical/Oval | Wide |
| Viewing Angle | 15° ~ 33° | 3° ~ 20° | - | 20° ~ 41° |
| For Use With/Related Manufacturer | Avago, Cree, Everlight, Led Engin, Lumileds, Luminus, Nichia, Osram, Samsung, Seoul, Stanley, Toshiba | Avago, Cree, Everlight, Led Engin, Lumileds, Luminus, Nichia, Osram, Samsung, Seoul, Stanley, Toshiba | Avago, Cree, Everlight, Led Engin, Lumileds, Luminus, Nichia, Osram, Samsung, Seoul, Stanley, Toshiba | Avago, Cree, Everlight, Led Engin, Lumileds, Luminus, Nichia, Osram, Samsung, Seoul |
| Material | - | Polycarbonate | Polycarbonate | Polycarbonate |
| Mounting Type | Snap-In | - | Snap-In | Snap-In |
