Advanced Photonix 076-14-21-011
- Part No.:
- 076-14-21-011
- Manufacturer:
- Advanced Photonix
- Category:
- Photodiodes
- Package:
- -
- Description:
- SENSOR PHOTODIODE 660NM TO46
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
076-14-21-011 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advanced Photonix
- Series:
- -
- Package/Case:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Wavelength:
- 660nm
- Color - Enhanced:
- Red
- Spectral Range:
- 350nm ~ 1100nm
- Diode Type:
- PIN
- Responsivity @ nm:
- 0.55 A/W @ 900nm
- Response Time:
- 13ns
- Voltage - DC Reverse (Vr) (Max):
- 75 V
- Current - Dark (Typ):
- 200pA
- Active Area:
- 2.91mm²
- Viewing Angle:
- 55°
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole

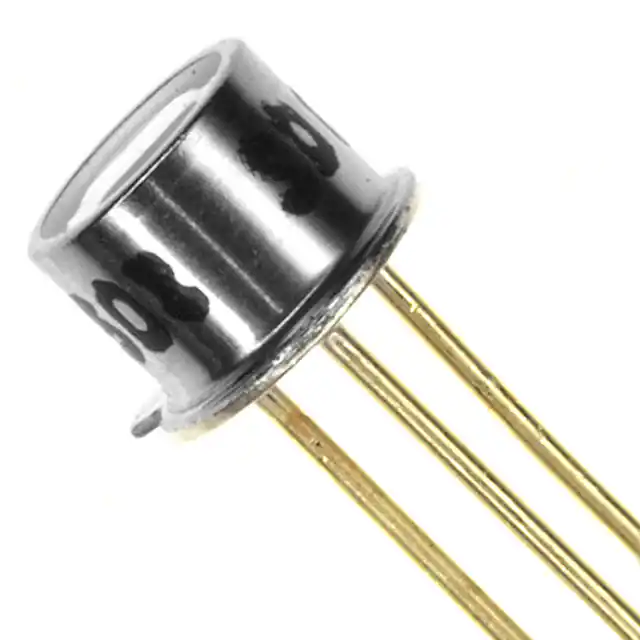

| Image |  |
 |
| Part Number | 076-14-21-011 | 076-11-31-211 |
| Manufacturer | Advanced Photonix | Advanced Photonix |
| Series | - | - |
| Package/Case | - | - |
| Packaging | Bulk | Bulk |
| Product Status | Active | Active |
| Wavelength | 660nm | 660nm |
| Color - Enhanced | Red | Red |
| Spectral Range | 350nm ~ 1100nm | 350nm ~ 1100nm |
| Diode Type | PIN | PIN |
| Responsivity @ nm | 0.55 A/W @ 900nm | 0.55 A/W @ 900nm |
| Response Time | 13ns | 5ns |
| Voltage - DC Reverse (Vr) (Max) | 75 V | 75 V |
| Current - Dark (Typ) | 200pA | 8nA |
| Active Area | 2.91mm² | 2.91mm² |
| Viewing Angle | 55° | 59° |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
