Excelitas Technologies 0020-001-000-40
- Part No.:
- 0020-001-000-40
- Manufacturer:
- Excelitas Technologies
- Category:
- Machine Vision - Lenses
- Package:
- Datasheet:
-
0020-001-000-40.pdf
- Description:
- LENS STD F1.6 0X-0.1X C-MOUNT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
0020-001-000-40 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Excelitas Technologies
- Series:
- MeVis-C
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Standard
- Focal Length:
- 35.0mm
- Magnification:
- 0x ~ 0.1x
- Focal Ratio:
- F1.6
- Compatible Sensor Size (Max):
- 1"
- Field of View:
- 16.0mm
- Working Distance:
- 370mm (Min)
- Depth Of Field:
- -
- Resolution:
- 2µm
- TV Distortion:
- -
- Filter Size:
- M35.5 x P0.5
- Diameter:
- 42.0mm Dia
- Length:
- 63.2mm
- Mounting Type:
- C-Mount
- Operating Temperature:
- -
| Image |  |
|
 |
|
 |

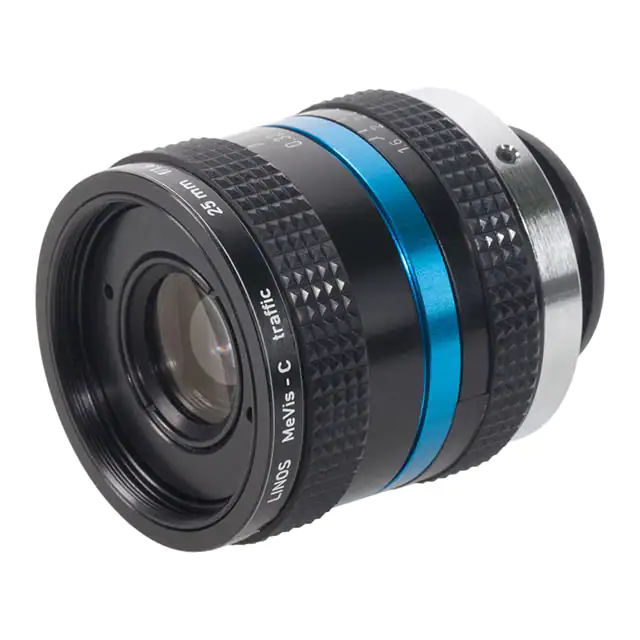

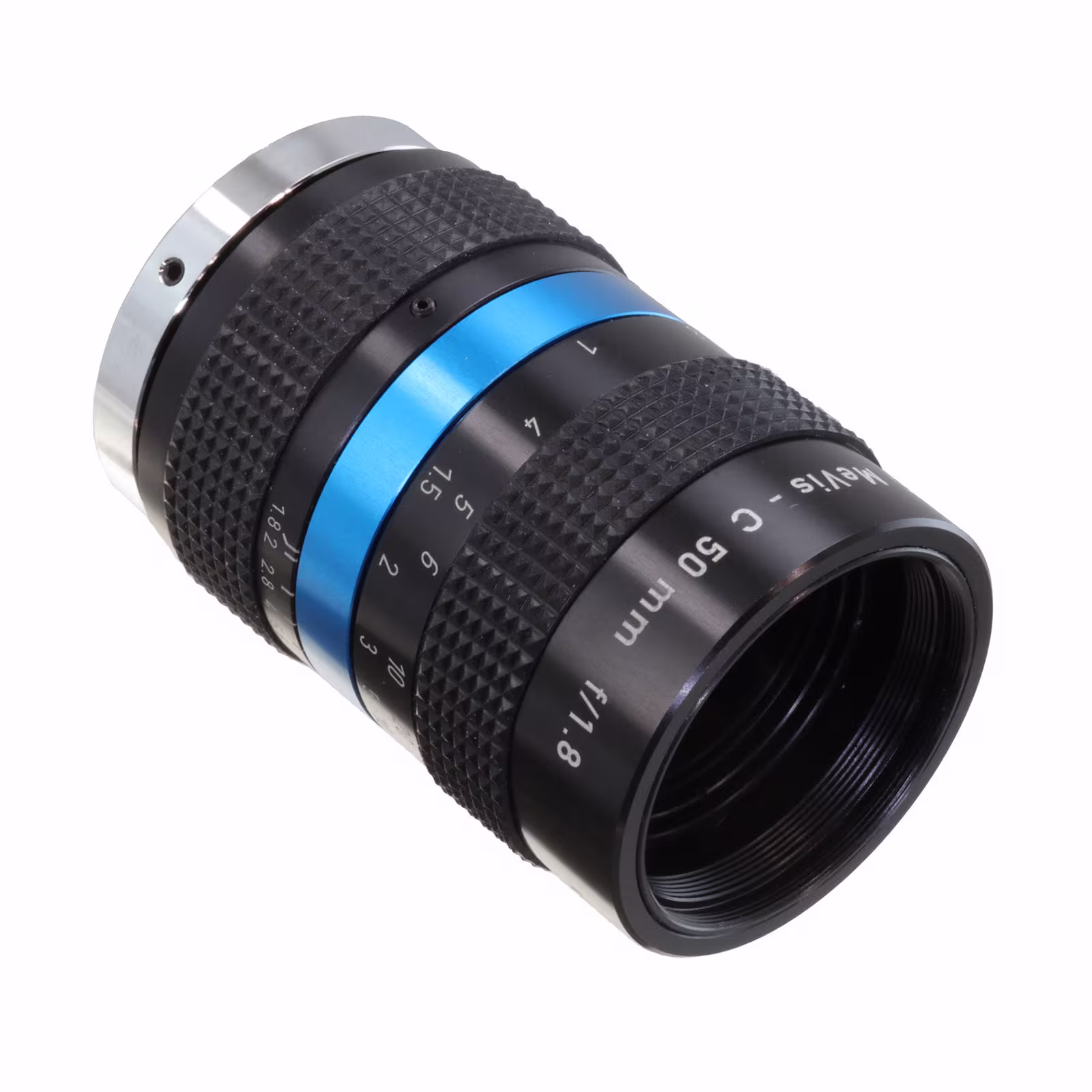

| Part Number | 0020-001-000-40 | 0020-007-000-30 | 0020-002-000-45 | 0020-002-000-40 | 0020-003-000-40 |
| Manufacturer | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies |
| Series | MeVis-C | MeVis-CF | MeVis-C | MeVis-C | MeVis-C |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Obsolete | Obsolete | Active | Active |
| Type | Standard | Wide Angle | Wide Angle | Wide Angle | Standard |
| Focal Length | 35.0mm | 25.0mm | 25.0mm | 25.0mm | 50.0mm |
| Magnification | 0x ~ 0.1x | 0x ~ 0.1x | 0x ~ 0.1x | 0x ~ 0.1x | 0x ~ 0.075x |
| Focal Ratio | F1.6 | F1.6 | F1.6 | F1.6 | F1.8 |
| Compatible Sensor Size (Max) | 1" | 1" | 1" | 1" | 1" |
| Field of View | 16.0mm | 16.0mm | 16.0mm | 16.0mm | 16.0mm |
| Working Distance | 370mm (Min) | 260mm (Min) | 260mm (Min) | 260mm (Min) | 670mm (Min) |
| Depth Of Field | - | - | - | - | - |
| Resolution | 2µm | 2µm | 2µm | 2µm | 2µm |
| TV Distortion | - | - | - | - | - |
| Filter Size | M35.5 x P0.5 | M30 x P0.75 | M35.5 x P0.5 | M35.5 x P0.5 | M35.5 x P0.5 |
| Diameter | 42.0mm Dia | 34.0mm Dia | 42.0mm Dia | 42.0mm Dia | 42.0mm Dia |
| Length | 63.2mm | 47.6mm | 47.8mm | 47.8mm | 71.2mm |
| Mounting Type | C-Mount | C-Mount | C-Mount | C-Mount | C-Mount |
| Operating Temperature | - | - | - | - | - |
