TIoT-3576SC RK3576 Compact AI Edge Controller Board with 6 TOPS NPU

Compact High-Performance Architecture

With dimensions of only 100 × 70 mm, the TIoT-3576SC provides powerful computing performance in a compact form factor. It is suitable for embedded terminals and intelligent equipment with limited internal installation space.

RK3576 Octa-Core Processor

The Rockchip RK3576 octa-core processor operates at frequencies up to 2.2 GHz, delivering responsive multitasking performance for multimedia, industrial control, data processing and intelligent terminal applications.

Integrated 6 TOPS NPU

The integrated neural processing unit delivers up to 6 TOPS of AI computing performance, supporting compatible edge AI workloads such as visual inspection, facial recognition, voice processing and intelligent data analysis.

4 GB and 32 GB Standard Configuration

The standard 4 GB memory and 32 GB onboard storage configuration provides a balanced platform for Android applications, AI models, multimedia content and local terminal data.

4K at 120 Hz DisplayPort Output

The DisplayPort signal is routed through the Type-C OTG connection and supports 1, 2 or 4 lanes with link rates of 1.62, 2.7, 5.4 and 8.1 Gbps. The maximum supported output resolution is 4K at 120 Hz.

eDP Display Output

One eDP interface can directly drive compatible eDP LCD panels with multiple resolutions, making the board suitable for integrated commercial displays and embedded touch terminals.

MIPI DSI Display Output

One MIPI DSI output supports compatible LCD panels with resolutions up to 2560 × 1600 at 60 Hz, providing flexible display integration for compact intelligent terminals.

Independent Dual-Screen Display

Compatible eDP and MIPI DSI display combinations can show different content on two screens, supporting operator displays, customer-facing screens and multi-screen interactive equipment.

Dual Ethernet Network Design

The TIoT-3576SC provides one 10/100/1000 Mbps Gigabit Ethernet interface and one 10/100 Mbps Ethernet interface. The dual-port design supports network separation, redundancy and flexible industrial network deployment.

Wi-Fi 5 and Bluetooth 5.0

Built-in Wi-Fi 5 and Bluetooth 5.0 provide stable wireless communication for network access, peripheral connectivity, remote management and terminal data transmission.

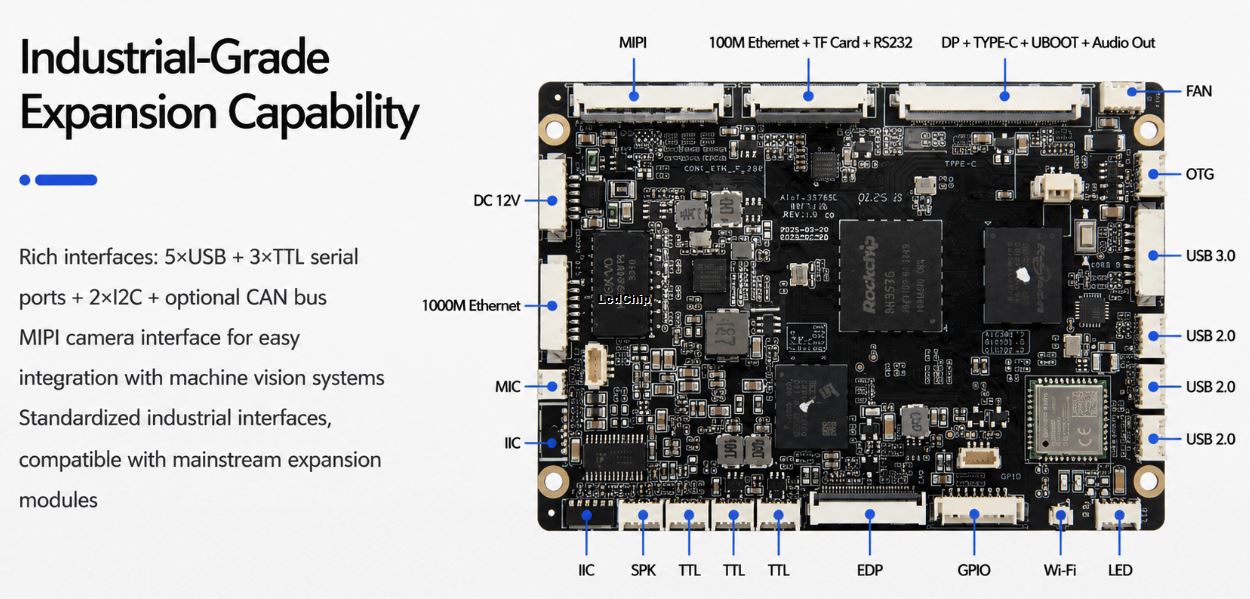

Five USB Interfaces

• 1 × Type-C OTG interface
• 1 × USB 3.0 HOST interface
• 3 × USB 2.0 HOST interfaces
• USB camera and scanner support
• USB storage and peripheral support

Industrial Serial Communication

Three TTL serial interfaces are available for communication with scanners, printers, sensors and industrial peripherals. The interfaces can be configured as RS232 according to project and hardware requirements.

Dual I²C Interfaces

Two I²C interfaces support compatible touch panels, sensors, control modules and other I²C peripherals, simplifying embedded equipment integration.

Optional MIPI Camera Interface

An optional MIPI camera interface can connect compatible camera modules for facial recognition, visual inspection, image capture and intelligent security applications.

Optional CAN Bus

An optional CAN bus interface can be configured for industrial automation, vehicle-related equipment, controllers and embedded devices requiring reliable field communication.

Android 14 and OpenHarmony Support

Android 14 is provided as the standard operating system. OpenHarmony adaptation can be supported according to the selected hardware configuration, firmware and project requirements.

Flexible Audio Functions

The board provides stereo speaker output with a default amplifier configuration of 2 × 6 W. It can be configured up to 2 × 10 W through customized hardware modification. Microphone input and a four-pole 3.5 mm headset interface are also supported.

Designed for Continuous Connectivity

Dual wired Ethernet, Wi-Fi and Bluetooth provide multiple communication options for commercial and industrial terminals that require reliable long-term network connectivity.
