TIoT-3568A RK3568 4K AIoT Smart Terminal Controller Board with 1 TOPS NPU

Powerful RK3568 Processor

The TIoT-3568A uses the Rockchip RK3568 64-bit processor featuring four ARM Cortex-A55 CPU cores and a maximum clock speed of up to 2.0 GHz. It provides stable performance for multimedia, data processing and intelligent terminal applications.

Integrated 1 TOPS NPU

The integrated neural processing unit provides up to 1 TOPS of AI computing performance, supporting compatible lightweight edge AI applications such as image recognition, intelligent analysis and terminal-side inference.

Flexible Memory and Storage

The standard configuration includes 2 GB LPDDR4 memory and 64 GB eMMC storage. Optional 4 GB or 8 GB memory and 32 GB, 64 GB or 128 GB storage configurations are available according to project requirements.

Multiple Operating Systems

Android 11 and Android 15 configurations are available. Linux and OpenHarmony system adaptation can also be provided according to the selected hardware, firmware and project requirements.

4K HDMI Display Output

One standard Type-A HDMI output supports resolutions up to 4K × 2K at 60 Hz, providing ultra-high-definition image output for commercial displays, digital signage and intelligent self-service equipment.

LVDS and eDP LCD Support

One LVDS output supports single-channel or dual-channel 6-bit and 8-bit configurations with resolutions up to 1920 × 1080. One eDP output can directly drive compatible eDP LCD panels with multiple resolutions.

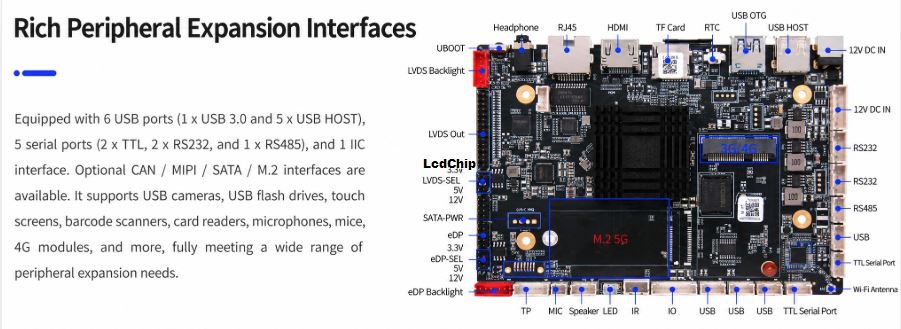

Six USB Interfaces

• 1 × USB 3.0 interface
• 5 × USB 2.0 HOST interfaces
• USB camera support
• Scanner and card-reader support
• USB storage and input-device support

Five Serial Communication Ports

• 2 × TTL serial interfaces
• 2 × RS232 serial interfaces
• 1 × RS485 industrial interface
• Peripheral control and communication
• Industrial equipment integration

Gigabit Ethernet Connectivity

The integrated Ethernet interface supports 10/100/1000 Mbps auto-negotiation, providing stable high-speed wired networking for remote management, cloud communication, content updates and large data transmission.

Wi-Fi, Bluetooth and 4G

The TIoT-3568A includes built-in Wi-Fi and Bluetooth 4.2. A PCI-E interface supports compatible 4G communication modules for mobile network access in terminals without fixed-network coverage.

Optional CAN Interface

One optional CAN communication interface can be provided for compatible automotive, industrial automation and embedded equipment communication applications.

Optional MIPI Camera Interface

An optional MIPI camera interface supports compatible camera modules for image capture, identity verification, intelligent recognition and visual terminal applications.

Optional SATA Storage Expansion

One optional SATA interface can be provided for connecting compatible solid-state drives or storage devices that require larger local storage capacity.

Optional M.2 Expansion

An optional M.2 interface supports compatible communication, storage or functional modules, providing greater flexibility for customized intelligent terminal designs.

Flexible Audio Functions

The board provides stereo speaker output with a default amplifier configuration of 2 × 6 W. It can be configured up to 2 × 10 W through customized hardware modification. Microphone and headphone interfaces are also supported.

Android System Customization

Android system customization, hardware-control APIs and reference code can be provided to support upper-layer APP development, peripheral integration and customized product deployment.
