TIoT-3568SC RK3568 Compact Dual-Screen AIoT Controller Board with 1 TOPS NPU

2026/6/18 15:11:25

The TIoT-3568SC is an ultra-compact Android AIoT controller board designed for smart payment terminals, dual-screen POS systems and small self-service devices. Powered by the Rockchip RK3568 quad-core Cortex-A55 processor, it integrates a 1 TOPS NPU, Mali-G52 GPU, two MIPI display outputs, one eDP output, USB and MIPI camera support, multiple serial interfaces, Wi-Fi, Bluetooth and Ethernet connectivity.

Core Advantages

Ultra-compact 100 × 60 mm board design
Rockchip RK3568 quad-core Cortex-A55 CPU
Maximum clock speed up to 2.0 GHz
Integrated 1 TOPS RKNN NPU
Android 11 operating system
Optional Linux and OpenHarmony support
Two MIPI outputs and one eDP output
Independent dual-screen display support
USB and 13MP MIPI camera support
External tri-color status indicator interface

Ultra-Compact Board Design

The TIoT-3568SC measures only 100 × 60 mm, allowing it to fit inside payment terminals, meeting room displays and other compact intelligent devices with limited internal installation space.

RK3568 Quad-Core Processor

The Rockchip RK3568 integrates four 64-bit ARM Cortex-A55 CPU cores with a maximum clock speed of up to 2.0 GHz. Its advanced 22 nm process provides strong performance, low power consumption and reduced operating temperature.

Integrated 1 TOPS AI Accelerator

The integrated RKNN NPU delivers up to 1 TOPS of AI computing performance, supporting compatible lightweight edge AI functions such as image recognition, intelligent analysis and terminal-side inference.

Dual-Screen Independent Display

The board provides two MIPI display outputs and one eDP output. Compatible display combinations can support two screens showing different content, making the board suitable for dual-screen payment and retail terminals.

Powerful Graphics and Video Processing

The integrated Mali-G52 GPU supports high-performance graphics rendering and multimedia processing. The platform supports H.265 and H.264 video encoding and decoding at up to 1080p and 60 frames per second.

USB and MIPI Camera Support

The TIoT-3568SC supports USB monocular and binocular cameras as well as compatible MIPI cameras. The MIPI camera interface supports 1 × 4-lane or 2 × 2-lane configurations at up to 2.5 Gbps per lane.

Up to 13MP Camera Resolution

Compatible MIPI camera modules with resolutions up to 13 megapixels can be connected for facial recognition, image capture, identity verification and intelligent payment terminal applications.

Tri-Color Status Indicator

An external tri-color indicator interface is available for displaying equipment status, transaction results, operating conditions and fault-warning information.

Rich Peripheral Expansion

4 × USB 2.0 interfaces
3 × TTL serial ports
2 serial ports optionally configurable as RS232
2 × I²C interfaces
GPIO expansion interfaces
ADC expansion interface

Flexible Network Communication

The board supports 10/100 Mbps auto-negotiation Ethernet, built-in Wi-Fi and Bluetooth 4.2, providing reliable wired and wireless networking for cloud communication, equipment management and data transmission.

Android System Customization

Customized Android functions, system APIs and reference code can be provided to support upper-layer APP development, peripheral control, hardware integration and customized terminal deployment.

Multiple Operating System Options

Android 11 is provided as the standard operating system. Linux and OpenHarmony adaptation can be supported according to project requirements.

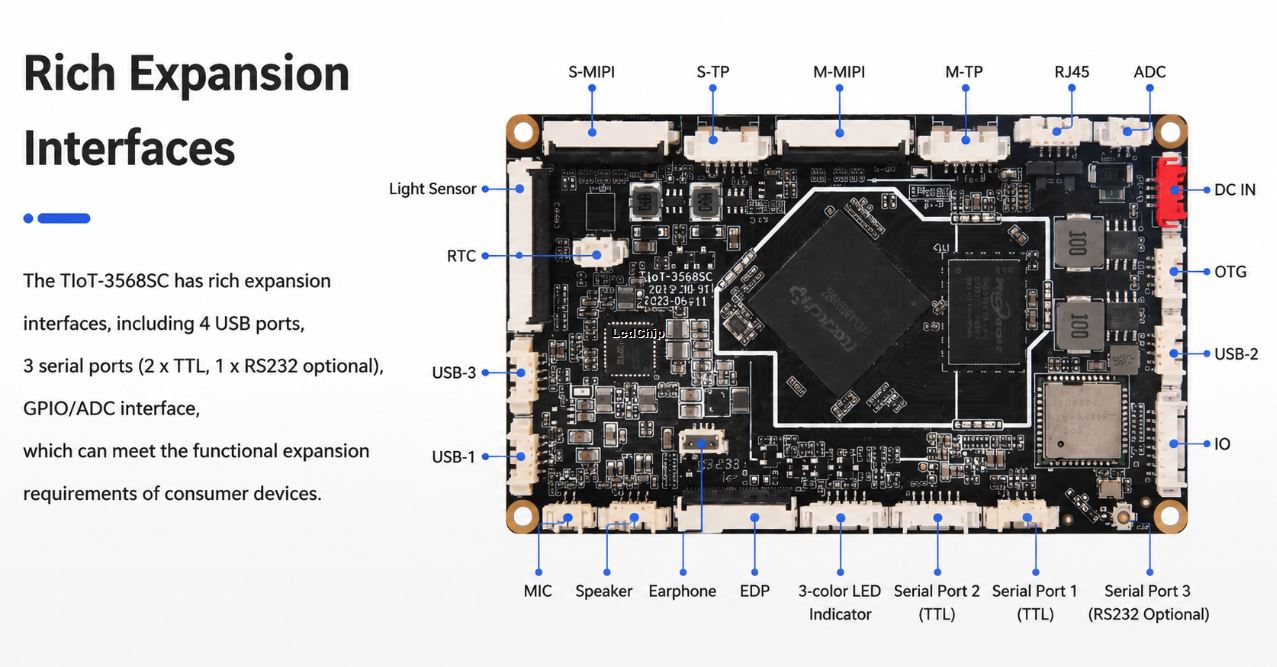

TIoT-3568SC RK3568 compact dual-screen AIoT controller board interface diagram

TIoT-3568SC Compact Dual-Screen AIoT Controller Board Interface Diagram

Core Configuration

Model	TIoT-3568SC
CPU	Rockchip RK3568 64-bit quad-core processor with 4 × ARM Cortex-A55 cores
Maximum CPU Frequency	Up to 2.0 GHz
Process Technology	22 nm
GPU	Integrated ARM Mali-G52 graphics processor
NPU	Integrated RKNN neural processing unit providing up to 1 TOPS of AI computing performance
Operating System	Android 11.0 standard; Linux and OpenHarmony support available according to project requirements
Memory	2 GB standard memory
Storage	64 GB standard onboard storage

Display Interfaces

eDP Output	1 × eDP output for directly driving compatible eDP LCD panels with multiple supported resolutions
MIPI Outputs	2 × MIPI display outputs for directly driving compatible MIPI LCD panels
Dual-Screen Display	Supports compatible dual-screen configurations with different content displayed on each screen
Video Encoding and Decoding	Supports H.265 and H.264 video encoding and decoding at resolutions up to 1080p at 60 fps

Camera Support

USB Cameras	Supports compatible USB monocular and binocular cameras
MIPI Cameras	Supports compatible MIPI camera modules
MIPI Lane Configuration	Supports 1 × 4-lane or 2 × 2-lane configurations at up to 2.5 Gbps per lane
Maximum Camera Resolution	Up to 13 megapixels

Expansion Interfaces

USB	4 × USB 2.0 interfaces for cameras, USB storage, keyboards, scanners and other compatible peripherals
Serial Ports	3 × TTL serial ports, with two ports optionally configurable as RS232
I²C Interfaces	2 × I²C interfaces for connecting compatible touch panels, sensors and other I²C peripherals
GPIO	GPIO expansion interfaces for external signal input, output and equipment control
ADC	ADC interface for compatible analog signal input applications
Status Indicator	External tri-color indicator interface for operating-status display and fault-warning functions

Network Support

Wi-Fi	Built-in Wi-Fi
Bluetooth	Built-in Bluetooth 4.2
Ethernet	Supports 10/100 Mbps auto-negotiation Ethernet

Audio Configuration

Speaker Output	Stereo left and right channel speaker output supporting up to 2 × 3 W at 4 Ω
Microphone Input	1 × MIC IN interface for compatible microphone, voice interaction and communication applications

Software and Development

Android Customization	Supports customized Android system functions according to project requirements
Linux Support	Linux system adaptation may be provided according to the selected project configuration
OpenHarmony Support	OpenHarmony adaptation may be provided according to project requirements
API Support	System APIs and reference code can be provided for secondary application development
APP Development	Supports upper-layer APP development, peripheral control, AI function integration and customized software deployment

Other Specifications

Board Dimensions	100 × 60 mm
RTC	Supports RTC real-time clock
System Upgrade	Supports local firmware upgrades via USB flash drive
Power Supply	12 V DC, 3 A

Typical Applications

AI payment and consumption terminals
Dual-screen retail POS terminals
Compact self-service terminals
Meeting room door displays
Smart retail equipment
Smart healthcare terminals
Government service terminals
Smart commercial district equipment
Smart education terminals
Edge AIoT devices

Note: The supplied product description mentions both 16 GB and 64 GB storage configurations. This specification uses 64 GB as the standard configuration according to the detailed parameter table. Storage, operating system, RS232 configuration, display combinations, camera compatibility and AI functions may vary depending on the PCB version, firmware and customized project requirements. Please confirm the final hardware configuration before publication or ordering.
